Norco Storm 3 Step-Thru 2018
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
75mm

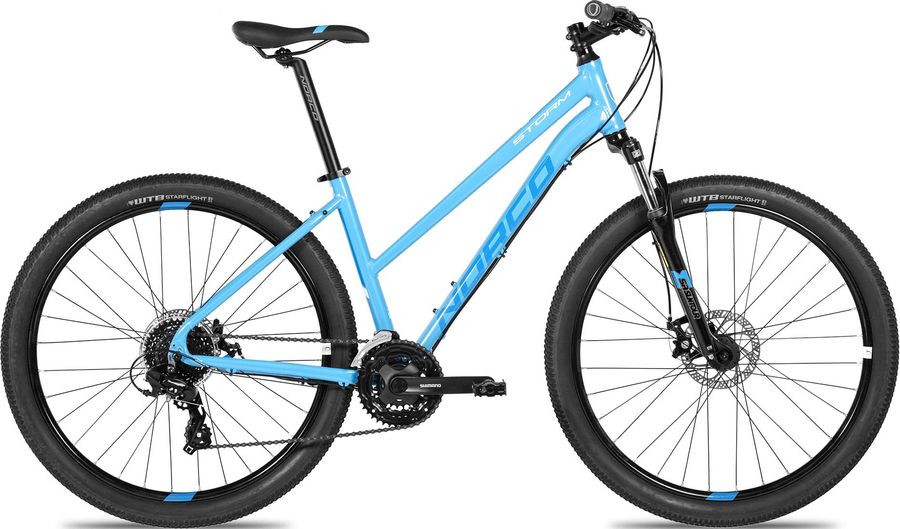

About the Norco Storm 3 Step-Thru 2018
The Norco Storm 3 Step-Thru 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8).
Specifications
|
Grip
|
Norco Grip
|
|---|---|
|
Pedals
|
Steel Cage Pedal
|
|
Steam
|
Norco Alloy 70mm/80mm
|
|---|---|
|
Saddle
|
Norco XC Saddle
|
|
Headset
|
Zero Stack Headset
|
|
Seatpost
|
Norco Alloy 31.6
|
|
Handlebar
|
X6 Alloy 720mm x 31.8
|
|
Brake lever
|
Shimano EF51 Tourney Levers
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano TY301 42/34/24
|
|---|---|
|
Shifter
|
Rear: Shimano Easy-Fire 500 8spd, Front: Shimano Easy-Fire 500 3spd
|
|
Bottom bracket
|
Cartridge BB
|
|
Front derailleur
|
Shimano Tourney FD-TX50 3spd
|
|
Cassette
|
Sunrace 8-speed
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Frame
|
Storm 6061 Alloy Step Thru Frame
|
|---|---|
|
Front suspension
|
SR Suntour M3030
|
|
Rims
|
WTB SX19 27.5"
|
|---|---|
|
Tires
|
WTB Beeline 27.5 x 2.2
|
|
Rear hub
|
Joytech D142TSE Alloy Disc QR
|
|
Front hub
|
Joytech D041DSE Alloy Disc QR
|
Geometry
| Size | XXS | XS | SM |
|---|---|---|---|
|
a
Seat tube length
|
340,0
|
395,0
|
440,0
|
|
b
Seat tube angle
|
73,5º
|
73,1º
|
72,7º
|
|
c
Top tube length
|
506,0
|
531,0
|
561,0
|
|
d
Head tube length
|
125,0
|
135,0
|
145,0
|
|
e
Head tube angle
|
68,5º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
95,0
|
91,0
|
91,0
|
|
h
Wheelbase
|
1020,0
|
1036,0
|
1062,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
596,0
|
608,0
|
617,0
|
|
l
Reach
|
327,0
|
344,0
|
366,0
|
|
m
Standover height
|
705,0
|
690,0
|
682,0
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
600,0
|
616,0
|
642,0
|
