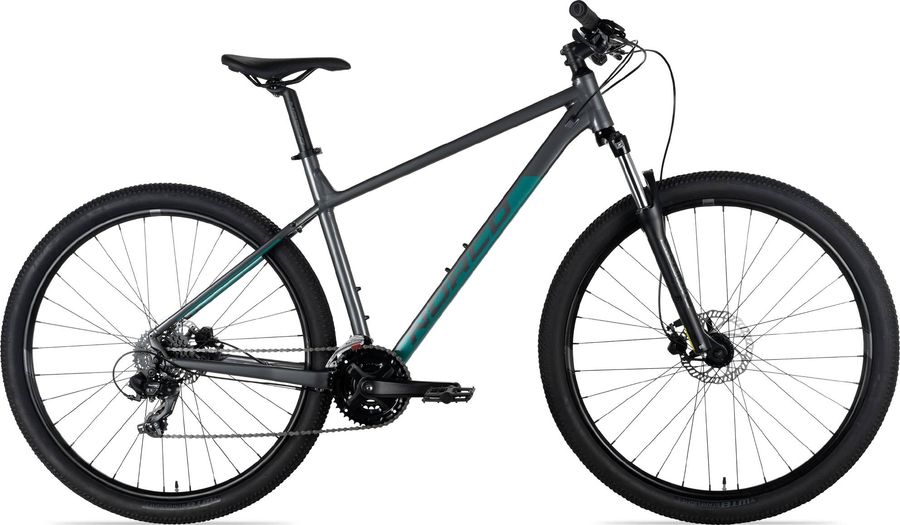

Norco Storm 4 27.5 2021
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Norco Storm 4 27.5 2021
The Norco Storm 4 27.5 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain. Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Norco
|
|---|---|
|
Pedals
|
VP Nylon Flat
|
|
Steam
|
Norco Alloy 60mm
|
|---|---|
|
Saddle
|
Norco XC
|
|
Headset
|
Zero Stack
|
|
Seatpost
|
Alloy
|
|
Handlebar
|
X6 Alloy, 740mm, 25mm Rise, 31.8mm Bore
|
|
Discs
|
Tektro 160mm
|
|
Brake lever
|
Tektro HD-M275, HD-M276 Short Reach on Step-Thru
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Prowheel Alloy, 24/34/42T
|
|---|---|
|
Shifter
|
Rear: Shimano Altus SL-M315, Front: Shimano Altus SL-M315
|
|
Bottom bracket
|
Cartridge, BSA Threaded
|
|
Front derailleur
|
Shimano Tourney FD-TY500
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano MF-TZ31
|
|
Frame
|
Storm 6061 Alloy XC Frame
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
WTB SX19
|
|---|---|
|
Tires
|
WTB Starflight 2.25"
|
|
Rear hub
|
Alloy QR 10x135mm QR HG
|
|
Front hub
|
Alloy QR 9x100mm QR
|
Geometry
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
|
a
Seat tube length
|
340,0
|
392,0
|
430,0
|
470,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
485,0
|
517,0
|
550,0
|
581,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
98,0
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1023,0
|
1057,0
|
1091,0
|
1125,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
49,0
|
49,0
|
49,0
|
44,0
|
|
k
Stack height
|
583,0
|
593,0
|
602,0
|
602,0
|
|
l
Reach
|
326,0
|
356,0
|
386,0
|
386,0
|
|
m
Standover height
|
579,0
|
607,0
|
623,0
|
664,0
|
|
x
Bottom bracket height
|
305,0
|
305,0
|
305,0
|
310,0
|
|
y
Front center
|
602,0
|
636,0
|
670,0
|
703,0
|
