Norco Storm 4 Women 2019
The Norco Storm 4 Women 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
80mm

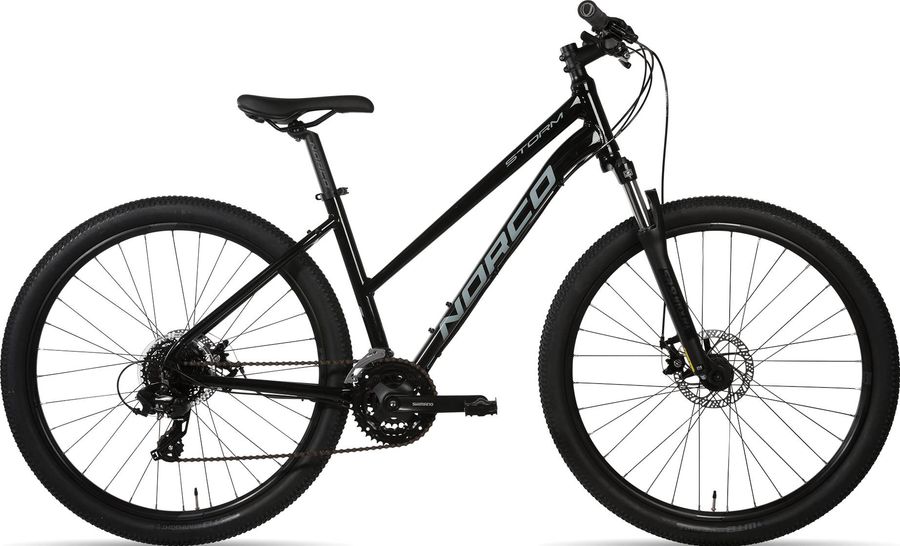

About the Norco Storm 4 Women 2019
The Norco Storm 4 Women 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8).
Specifications
|
Grip
|
Norco, Black
|
|---|---|
|
Pedals
|
Steel Cage Pedal
|
|
Steam
|
Norco Alloy 70mm/80mm
|
|---|---|
|
Saddle
|
Norco XC Saddle
|
|
Headset
|
Zero Stack Headset
|
|
Seatpost
|
Norco Alloy, 31.6mm
|
|
Handlebar
|
X6 Alloy 720mm x 31.8
|
|
Brake lever
|
Shimano EF500 Tourney Lever/Shifter Combo
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano TY301, 170mm, 42/34/24T
|
|---|---|
|
Shifter
|
Rear: Shimano ST-EF500, Easy-Fire, 8 Speed, Front: Shimano ST-EF500, Easy-Fire, 3 Speed
|
|
Bottom bracket
|
Cartridge BB, Threaded BSA 73mm
|
|
Front derailleur
|
Shimano Tourney FD-TX710, 3 Speed
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano MF-TZ31
|
|
Frame
|
Norco Storm Step-Thru, Aluminum, 9x135mm QR Dropouts
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
WTB SX19, 32 Hole, 19mm Internal Width
|
|---|---|
|
Tires
|
WTB Starflight, 27.5x2.25"
|
|
Rear hub
|
Joytech D142TSE Disc, 10x135mm QR
|
|
Front hub
|
Joytech D041DSE Alloy Disc QR
|
Geometry
| Size | XXS | XS | SM |
|---|---|---|---|
|
a
Seat tube length
|
340,0
|
395,0
|
440,0
|
|
b
Seat tube angle
|
73,5º
|
73,1º
|
72,7º
|
|
c
Top tube length
|
506,0
|
531,0
|
561,0
|
|
d
Head tube length
|
125,0
|
135,0
|
145,0
|
|
e
Head tube angle
|
68,5º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
95,0
|
91,0
|
91,0
|
|
h
Wheelbase
|
1020,0
|
1036,0
|
1062,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
596,0
|
608,0
|
617,0
|
|
l
Reach
|
327,0
|
344,0
|
366,0
|
|
m
Standover height
|
705,0
|
690,0
|
682,0
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
600,0
|
616,0
|
642,0
|
