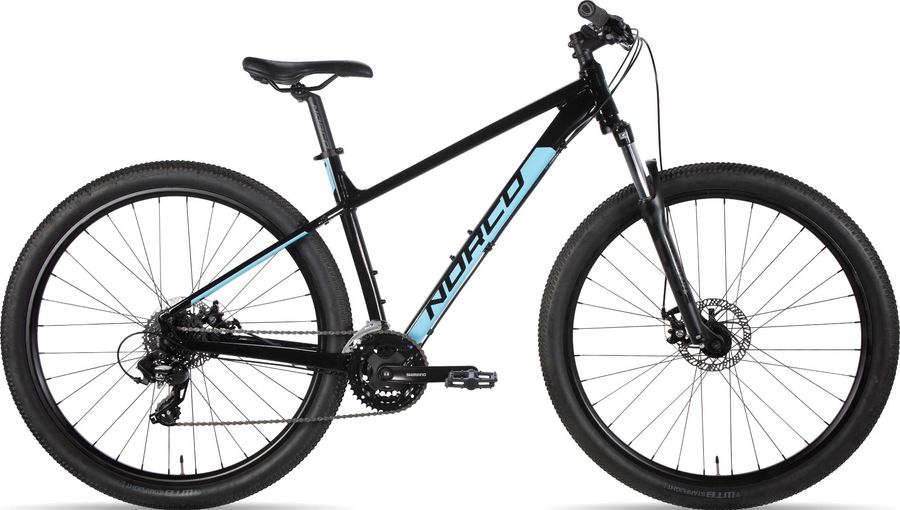

Norco Storm 4 Women's 27.5 2020
The Norco Storm 4 Women's 27.5 2020 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Norco Storm 4 Women's 27.5 2020
The Norco Storm 4 Women's 27.5 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8).
Specifications
|
Grip
|
Norco
|
|---|---|
|
Pedals
|
VP Flat Nylon
|
|
Steam
|
Norco Alloy 60mm
|
|---|---|
|
Saddle
|
Norco XC Women's
|
|
Headset
|
Zero Stack
|
|
Seatpost
|
Alloy
|
|
Handlebar
|
X6 Alloy, 740mm, 25mm Rise, 31.8mm Bore
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano TY301 42/34/24T
|
|---|---|
|
Shifter
|
Rear: Shimano EZ FIRE 500, 8 speed, Front: Shimano EZ FIRE 500, 3 speed
|
|
Bottom bracket
|
Cartridge
|
|
Front derailleur
|
Shimano Tourney FD-TX710
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano MF-TZ31
|
|
Frame
|
Storm 6061 Alloy XC Frame
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
Alex DP21 TRS 29"/27.5"
|
|---|---|
|
Tires
|
WTB Starflight 2.25”
|
|
Rear hub
|
Joytech D872TSE Alloy
|
|
Front hub
|
Joytech D871DSE Alloy
|
Geometry
| Size | XXS | XS | SM |
|---|---|---|---|
|
a
Seat tube length
|
340,0
|
390,0
|
430,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
485,0
|
517,0
|
550,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1023,0
|
1057,0
|
1091,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
49,0
|
49,0
|
49,0
|
|
k
Stack height
|
583,0
|
593,0
|
602,0
|
|
l
Reach
|
326,0
|
356,0
|
386,0
|
|
m
Standover height
|
579,0
|
607,0
|
623,0
|
|
x
Bottom bracket height
|
305,0
|
305,0
|
305,0
|
|
y
Front center
|
602,0
|
636,0
|
670,0
|
