BikeWise

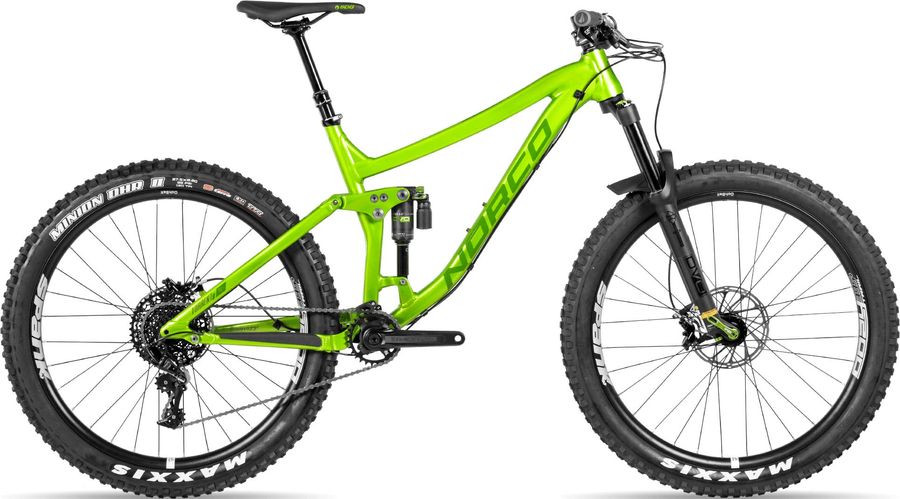

Norco Torrent FS 1 2019

MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm
Norco Torrent FS 1 2019

About the Norco Torrent FS 1 2019

The Norco Torrent FS 1 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Torrent FS 1 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Stage 1, Lock-On
Components
Steam
Spank Spike Race Stem 50mm length
Saddle
SDG Duster RL
Headset
FSA #57 E ( tapered internal ) 1.5” to 1-1/8”
Seatpost
TranzX Stealth Dropper, 80mm (XS) | 100mm (S) | 125mm (M) | 150mm (L/XL) Travel, 31.6mm, 1x Lever
Handlebar
Spank Spike 800mm race bar w/15mm rise
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Race Face Aeffect, 170mm (XS/S) | 175mm (M/L/XL), 28T
Shifter
Rear: SRAM NX, 11 Speed, Front: -
Chain guide
OneUp Components, Low Direct Mount, S3/E-Type
Bottom bracket
Race Face BB, Threaded BSA 73mm
Chain tensioner
OneUp Components Chain Guide, Low Direct Mount, S3/E-Type
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Norco Torrent FS, Aluminum, 130mm Travel, Boost 12x148mm TA Dropouts
Front suspension
DVO Diamond
Rear suspension
DVO Topaz T3
Wheels
Rims
Spank Oozy Trail 395+, 32 Hole, 35mm Internal Width
Tires
Maxxis Minion DHF, 27.5x2.8”, EXO/TR, Folding
Spokes
Stainless steel, black
Rear hub
SRAM MTH 746, Boost 12x148mm, XD Driver
Front hub
SRAM MTH 716 110x15 sealed bearing disc hub

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
435,0
470,0
510,0
b
Seat tube angle
74,9º
74,4º
74,0º
73,6º
c
Top tube length
572,0
603,0
635,0
666,0
d
Head tube length
94,0
94,0
104,0
114,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
95,0
95,0
95,0
95,0
h
Wheelbase
1136,0
1167,0
1,2e3
1232,0
i
Chainstay length
430,0
435,0
440,0
445,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
602,0
602,0
611,0
620,0
l
Reach
411,0
437,0
461,0
485,0
m
Standover height
806,0
790,0
788,0
798,0
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
706,0
732,0
761,0
788,0
