Norco Torrent HT S1 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Front travel
150mm

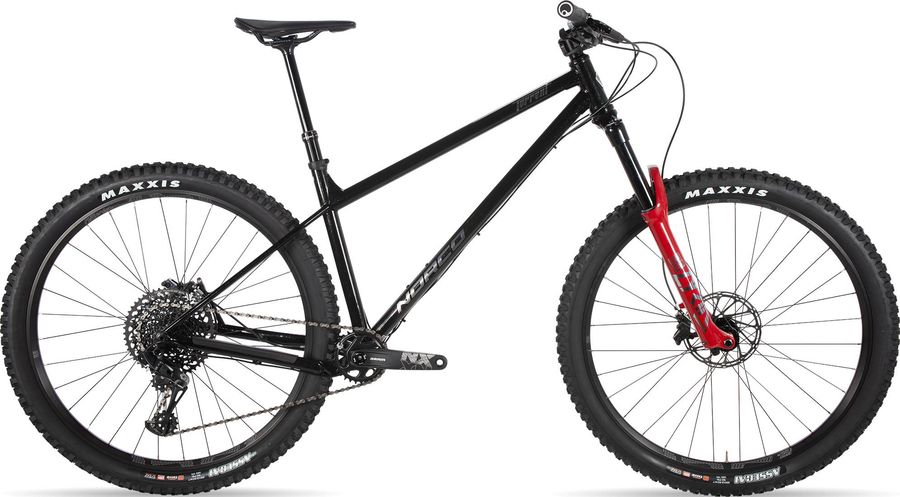

Norco Torrent HT S1 2020

About the Norco Torrent HT S1 2020

The Norco Torrent HT S1 2020 is a Hardtail Enduro Mountain Bike with a steel frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Norco Torrent HT S1 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30 lock on
Components
Steam
CNC 6061 Alloy, 50mm rise, 35mm bore
Saddle
Fizik Taiga
Headset
FSA 44mm Cartridge Bearing
Seatpost
X-Fusion Manic dropper
Handlebar
Norco 6061 Alloy, 800mm, double butted
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle B148 DUB 30T
Shifter
SRAM GX Eagle, 12 speed
Bottom bracket
SRAM DUB MTB73 threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Double Butted Chromo Steel
Front suspension
RockShox Lyrik Ultimate RC2
Wheels
Rims
e*thirteen LG1 EN 29" Rim
Tires
Maxxis Assegai 29x2.5" 3C/EXO+/TR
Rear hub
Novatec Boost 12x148mm Boost
Front hub
Novatec Boost 15x110mm Boost

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
395,0
435,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
583,0
613,0
645,0
677,0
d
Head tube length
105,0
105,0
115,0
125,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
138,0
138,0
138,0
138,0
h
Wheelbase
1177,0
1207,0
1247,0
1281,0
i
Chainstay length
424,0
424,0
429,0
429,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
641,0
641,0
650,0
659,0
l
Reach
424,0
454,0
484,0
514,0
m
Standover height
666,0
681,0
702,0
748,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
y
Front center
757,0
787,0
822,0
856,0
