BikeWise

Orange 329 Factory 2020

MTB Downhill
Groupset
SRAM X01
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
203mm
Rear travel
190mm

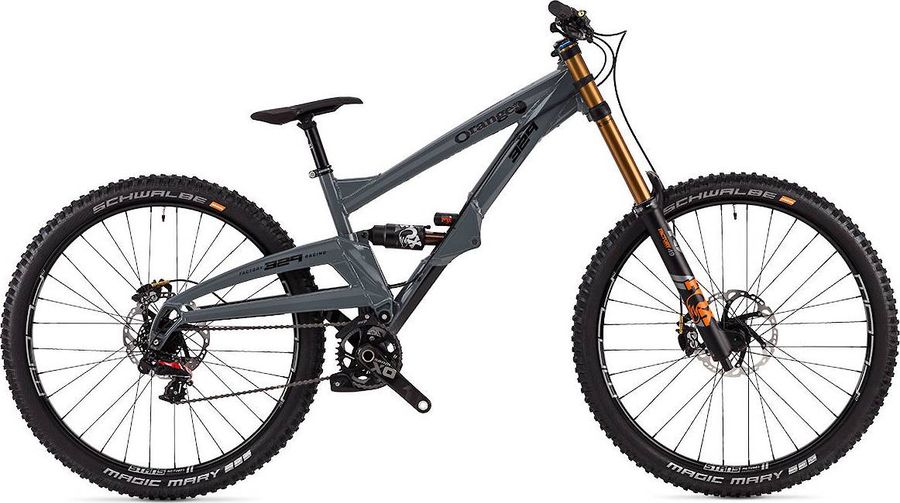

Orange 329 Factory 2020

About the Orange 329 Factory 2020

The Orange 329 Factory 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include hydraulic disc brakes.

Features

The Orange 329 Factory 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Renthal Integra, 35mm clamp, 50mm length
Saddle
SDG I-Fly I-Beam
Headset
Hope Tech, ZS49/28.6 upper, ZS49/30 lower, for 1.125" steerer
Seatpost
SDG I-Beam Aluminium
Handlebar
Renthal Fatbar Carbon, 35mm bore, 800mm width, 20mm rise
Brake lever
Shimano Saint, Option: Hope Tech 3 E4
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
Truvativ Descendant DH DUB, 165mm length
Shifter
SRAM X01 DH, 7-speed
Chain guide
MRP G4
Bottom bracket
SRAM DUB, 83mm
Cassette
SRAM XG-795 7s 136 g
Cog finish cassete
Black
Cog sizes
10-24t:10,12,14,16,18,21,24
Gearing
10-24t
Model
CS-XG-795-A1
Name
XG-795 MINI BLOCK™ Cassette
Speed
7s
Technology cassete
XG
Weight
136
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Frame
Aluminum
Front suspension
Fox 40 Factory
Rear suspension
Fox Float X2 Factory
Wheels
Rims
Stan's NoTubes Flow MK3
Tires
Schwalbe Magic Mary, Super Gravity, 29" x 2.35"
Rear hub
Hope Tech Pro 4 DH
Front hub
Hope Tech Pro 4 DH

Geometry

Size MD LG XL XXL
a
Seat tube length
381,0
381,0
432,0
432,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
598,0
618,0
632,0
653,0
d
Head tube length
110,0
110,0
130,0
130,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1244,0
1266,0
1284,0
1305,0
i
Chainstay length
467,0
467,0
467,0
467,0
j
Bottom bracket drop
39,0
39,0
39,0
39,0
k
Stack height
656,0
656,0
674,0
674,0
l
Reach
422,0
442,0
451,0
473,0
m
Standover height
730,0
735,0
745,0
745,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
-
-
-
-
