Orange Alpine 6 E Factory 2019

E-Bike

MTB Enduro

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Front travel

170mm

Rear travel

160mm

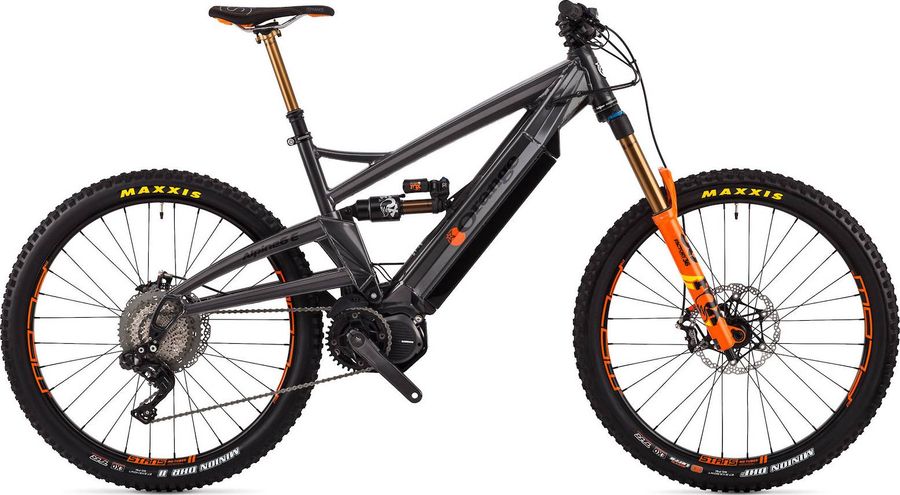

About the Orange Alpine 6 E Factory 2019

The Orange Alpine 6 E Factory 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Alpine 6 E Factory 2019 has 2 features listed below.

Dropper seatpost More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Strange 130 Lock-on

Components
Steam	Hope, 35mm, black
Saddle	SDG Radar, cromo rail, black
Battery	Shimano E8020, integrated
Headset	Hope 49mm
Seatpost	FOX Factory Transfer 150mm, Kashima coating
Handlebar	Renthal FatBar, 800mm, 35mm diameter
Brake lever	Shimano Saint
Brakes	Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g) 438 (BL-M820) Brake hose color kit Black Brake hose color kit White Brake hose kit SM-BH90-SBLS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M820 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard H01A Resin H03A Resin Pad standard H03C Metal Pad mount Pad axle Piston 4 Piston material Ceramic Recommended disc brake rotor SM-RT99 SM-RT86

Drivetrain
Crankset	Shimano E8050
Motor	Shimano E8000
Shifter	Shimano XT, Di2, M8050
Chain guide	Shimano CDE80
Chain	Shimano CN-M8100 252 g
Average weight (g) 252 Chromizing treatment roller link pin Model CN-M8100 Pin link plate Gray Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano Deore XT CS-M8000 HG
Aluminum gear pieces 2 Aluminum spider arm finish Anodized Aluminum spider arm pieces 2 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Anodized Lock ring material Aluminum Model CS-M8000 Steel gear finish Shot-Ni Steel gear pieces 9 Type HG Weights 11-40T: 411g 11-42T: 434g 11-46T: 437g
Rear derailleur	Shimano Deore XT RD-M8050 Di2

Frameset
Frame	Aluminum
Rear suspension	Fox Float X2 Factory
Front suspension	Fox 36 Float Factory Kashima

Wheels
Rims	Stan's Flow Mk3, silver
Tires	Front: Maxxis Minion DHF WT 2.5", 3C, EXO, TR, Rear: Maxxis Minion DHR II WT 2.4", EXO, TR
Rear hub	Hope Pro 4
Front hub	Hope Pro 4

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 34T

Cassette: 11-46T

Speeds: 11s

Gearing

Average

0,74

Average

3,1

Compared to similar bikes, the Orange Alpine 6 E Factory 2019 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG
a Seat tube length	406,4	431,8	457,2
b Seat tube angle	74,0º	74,0º	74,0º
c Top tube length	626,4	646,4	666,4
d Head tube length	120,0	120,0	125,0
e Head tube angle	64,5º	64,5º	64,5º
f Rake	-	-	-
g Trail	-	-	-
h Wheelbase	1217,4	1236,4	1257,4
i Chainstay length	436,4	436,4	436,4
j Bottom bracket drop	13,0	13,0	13,0
k Stack height	625,4	625,4	628,4
l Reach	450,4	469,4	487,4
m Standover height	744,4	751,4	764,4
x Bottom bracket height	342,0	342,0	342,0
y Front center	-	-	-
