Orange Alpine 6 Pro-Line 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm

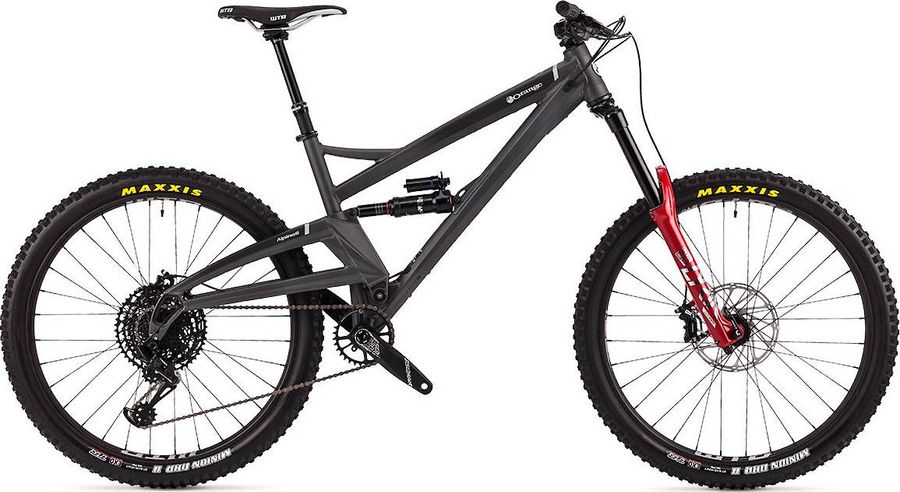

Orange Alpine 6 Pro-Line 2020

About the Orange Alpine 6 Pro-Line 2020

The Orange Alpine 6 Pro-Line 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Alpine 6 Pro-Line 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Single, lock-on, black
Components
Steam
Race Face Chester, 35mm clamp diameter, 40mm length
Saddle
WTB Silverado Comp
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Burgtec RideWide Enduro, 800mm width
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Truvativ Descendant 6k Eagle DUB
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
WTB ST Light i30, 30mm internal width
Tires
Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Rear hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Front hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver

Geometry

Size SM MD LG XL XXL
a
Seat tube length
381,0
432,0
457,0
483,0
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
603,0
623,0
643,0
663,0
683,0
d
Head tube length
100,0
120,0
120,0
125,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1206,0
1229,0
1249,0
1270,0
1291,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
18,0
k
Stack height
600,0
618,0
618,0
622,0
627,0
l
Reach
430,0
445,0
465,0
484,0
503,0
m
Standover height
698,0
722,0
750,0
773,0
788,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
337,0
y
Front center
-
-
-
-
-
