Orange Clockwork EVO 29 Comp 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm
Orange Clockwork EVO 29 Comp 2020

About the Orange Clockwork EVO 29 Comp 2020

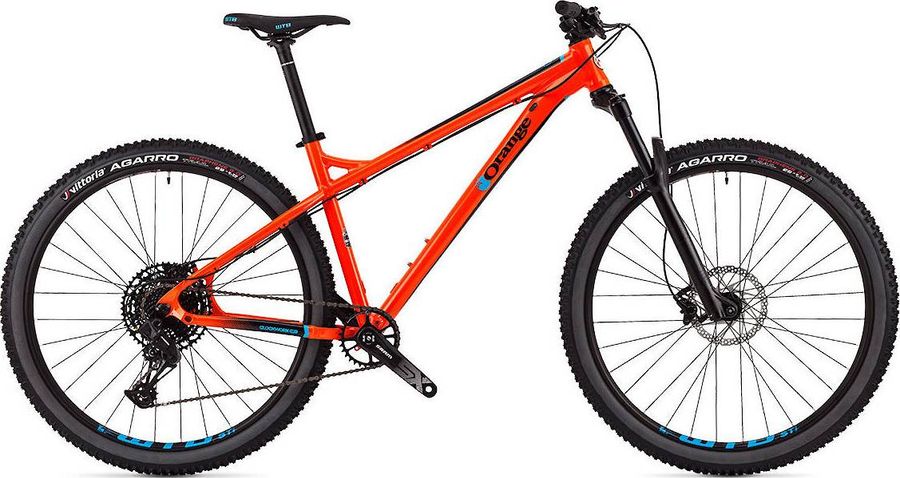

The Orange Clockwork EVO 29 Comp 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Orange Clockwork EVO 29 Comp 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Strange Stalk, 40mm length
Saddle
WTB Silverado Sport
Headset
FPD, ZS44/28.6 upper, EC44/40 lower, for tapered steerer
Seatpost
Strange, 400mm length
Handlebar
Strange Riser, 0.5" rise, 780mm width
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed
Chain guide
None, Option: MRP 1x
Bottom bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i27, 27mm internal width
Tires
Vittoria Agarro, 29" x 2.35"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
628,0
648,0
668,0
d
Head tube length
110,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1196,0
1215,0
1237,0
i
Chainstay length
448,0
448,0
448,0
j
Bottom bracket drop
72,0
72,0
72,0
k
Stack height
644,0
644,0
653,0
l
Reach
443,0
463,0
481,0
m
Standover height
685,0
704,0
743,0
x
Bottom bracket height
302,0
302,0
302,0
y
Front center
-
-
-
