Orange Clockwork EVO 29 S 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm

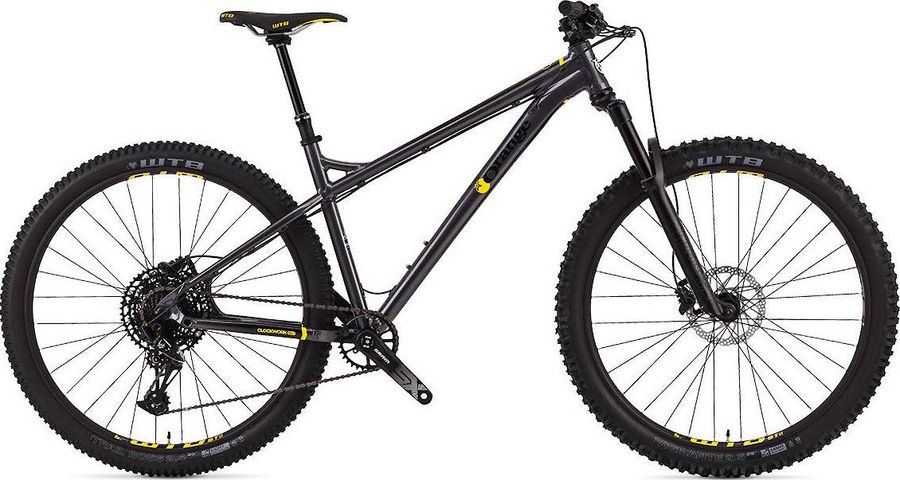

Orange Clockwork EVO 29 S 2020

About the Orange Clockwork EVO 29 S 2020

The Orange Clockwork EVO 29 S 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Clockwork EVO 29 S 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Race Face Chester, 35mm clamp, 40mm length
Saddle
WTB Silverado Comp
Headset
FPD, ZS44/28.6 upper, EC44/40 lower, for tapered steerer
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Race Face Chester Stealth, 780mm width, 35mm bore
Brake lever
Shimano MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed
Chain guide
None, Option: MRP 1x
Bottom bracket
SRAM DUB, 73mm
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
Aluminum
Front suspension
RockShox Revelation
Wheels
Rims
WTB ST Light i30, 30mm internal width
Tires
Front: WTB Vigilante, 29" x 2.5", Rear: WTB Trail Boss, 29" x 2.4"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
628,0
648,0
668,0
d
Head tube length
110,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1196,0
1215,0
1237,0
i
Chainstay length
448,0
448,0
448,0
j
Bottom bracket drop
72,0
72,0
72,0
k
Stack height
644,0
644,0
653,0
l
Reach
443,0
463,0
481,0
m
Standover height
685,0
704,0
743,0
x
Bottom bracket height
302,0
302,0
302,0
y
Front center
-
-
-
