Orange Clockwork EVO Comp 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm

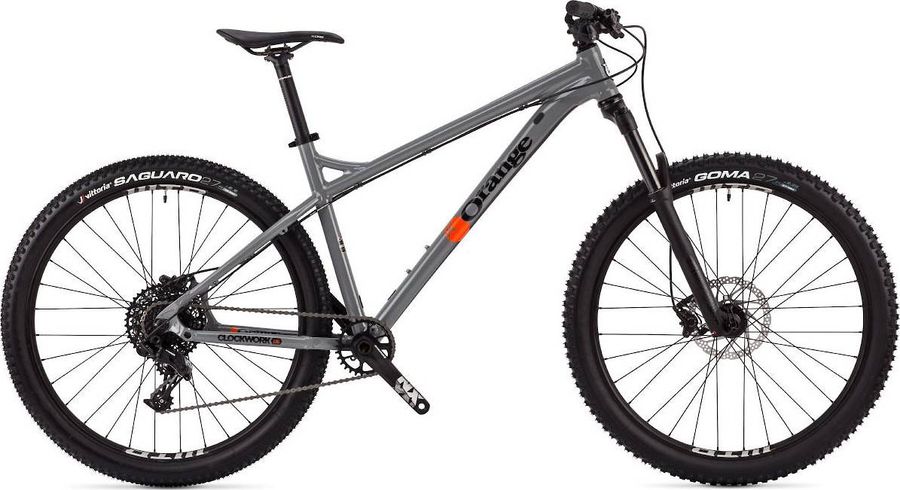

Orange Clockwork EVO Comp 2019

About the Orange Clockwork EVO Comp 2019

The Orange Clockwork EVO Comp 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Orange Clockwork EVO Comp 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on, black
Pedals
Kore Rivera Thermo
Components
Steam
Strange Stalk
Saddle
Kore Fazor
Headset
FPD 44mm
Seatpost
Strange, 400mm
Handlebar
Strange, 0.5" rise, 750mm
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX, 24mm
Shifter
SRAM NX, 11-speed
Bottom bracket
SRAM GXP
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM NX Eagle
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST Light i29
Tires
Front: Vittoria Goma 2.25", Rear: Vittoria Saguaro 2.2"
Rear hub
Formula
Front hub
Formula

Geometry

Size SM MD LG XL
a
Seat tube length
406,4
431,8
457,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
616,4
636,4
656,4
676,4
d
Head tube length
100,0
110,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
1184,4
1204,4
1226,4
i
Chainstay length
431,4
431,4
431,4
431,4
j
Bottom bracket drop
51,0
51,0
51,0
51,0
k
Stack height
620,4
627,4
628,4
636,4
l
Reach
430,4
456,4
479,4
496,4
m
Standover height
664,4
682,4
700,4
736,4
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
-
-
-
-
