Orange Clockwork EVO Comp 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
140mm

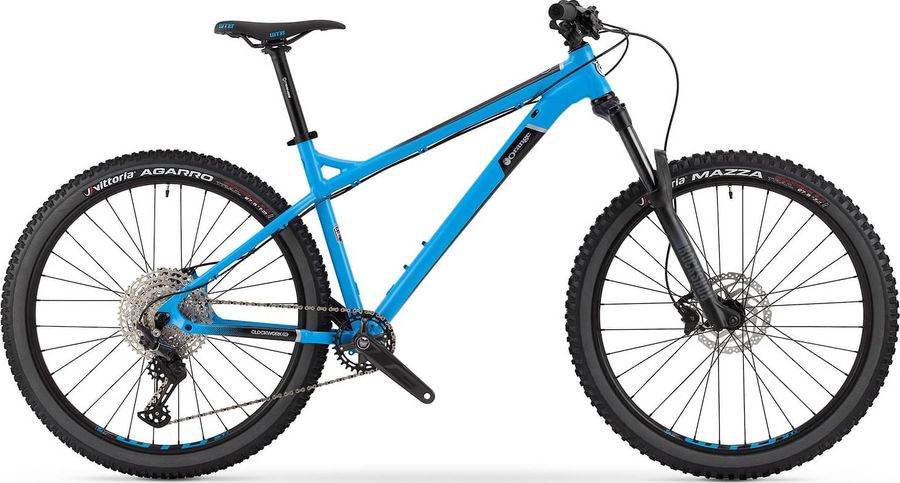

Orange Clockwork EVO Comp 2021

About the Orange Clockwork EVO Comp 2021

The Orange Clockwork EVO Comp 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Orange Clockwork EVO Comp 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange Grappler, lock-on
Pedals
Kore Rivera Thermo, Option: Burgtec Penthouse Flat MK5
Components
Steam
Strange Stalk, 40mm length
Saddle
WTB Silverado Sport
Headset
FPD, ZS44/28.6 upper, EC44/40 lower
Seatpost
Strange, 400mm length
Handlebar
Strange, 1" rise, 780mm width
Brake lever
Shimano MT401
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano M511-1
Shifter
Shimano Deore M6100, 12-speed
Bottom bracket
Shimano, 73mm
Chain
KMC 12v
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i27, 27mm internal width
Tires
Front: Vittoria Mazza, 27.5" x 2.4", Rear: Vittoria Agarro, 27.5" x 2.35"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
457,0
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
616,0
636,0
656,0
676,0
d
Head tube length
100,0
110,0
110,0
120,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1170,0
1192,0
1212,0
1233,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
59,0
59,0
59,0
59,0
k
Stack height
618,0
627,0
627,0
636,0
l
Reach
440,0
457,0
477,0
495,0
m
Standover height
664,0
682,0
700,0
736,0
x
Bottom bracket height
296,0
296,0
296,0
296,0
y
Front center
-
-
-
-
