BikeWise

Orange Crush 2021

MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
150mm

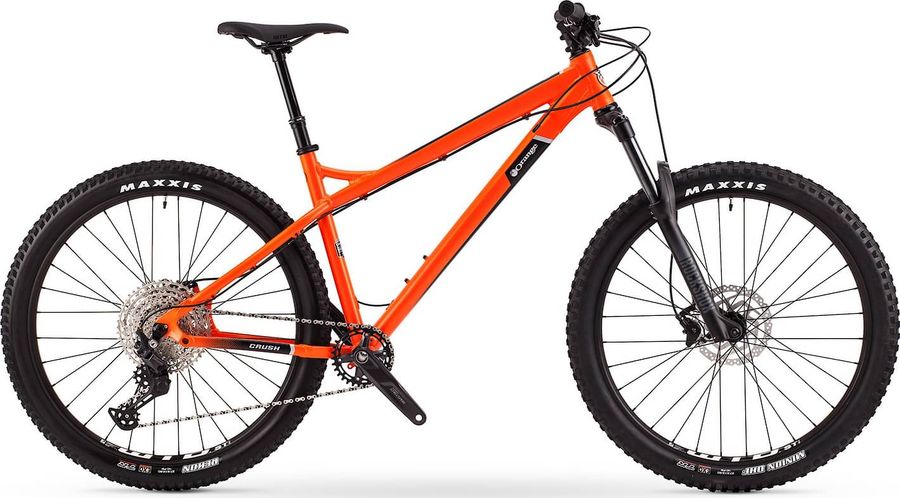

Orange Crush 2021

About the Orange Crush 2021

The Orange Crush 2021 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Crush 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange Grappler, lock-on
Pedals
Kore Rivera Thermo, Option: Burgtec Penthouse Flat MK5
Components
Steam
Strange Stalk, 40mm length
Saddle
WTB Silverado Sport
Headset
FPD, ZS44/28.6 upper, EC44/40 lower
Seatpost
KS Rage-i dropper, 150mm drop
Handlebar
Strange, 1" rise, 780mm width
Brake lever
Shimano MT401
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano M5100
Shifter
Shimano Deore M5100, 11-speed
Bottom bracket
73mm
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Chain
KMC 11v
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i27, 27mm inner width
Tires
Maxxis High Roller II, EXO, 27.5" x 2.4"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
457,0
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
603,0
625,0
647,0
670,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1177,0
1201,0
1226,0
1250,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
623,0
633,0
641,0
650,0
l
Reach
423,0
443,0
463,0
483,0
m
Standover height
648,0
670,0
701,0
734,0
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
-
-
-
-
