Orange Crush Comp 2020

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
150mm

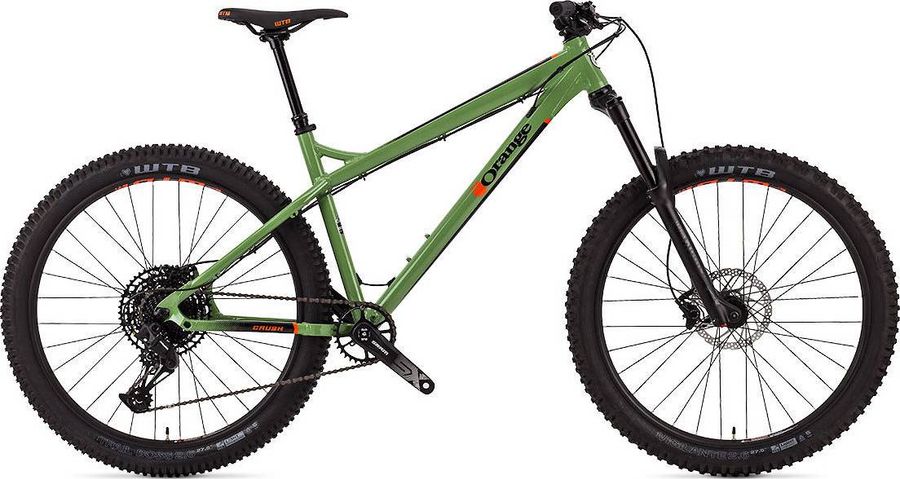

Orange Crush Comp 2020

About the Orange Crush Comp 2020

The Orange Crush Comp 2020 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Crush Comp 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
Kore Rivera Thermo, Option: Burgtec MK4 Composite
Components
Steam
Strange Stalk, 40mm length
Saddle
WTB Silverado Sport
Headset
FPD, ZS44/28.6 upper, EC44/40 lower, for tapered steerer
Seatpost
KS Rage-i dropper, 150mm drop
Handlebar
Strange Riser, 0.5" rise, 780mm width
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed
Chain guide
None, Option: MRP 1x
Bottom bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Sektor
Wheels
Rims
WTB ST i30, 30mm internal width
Tires
Front: WTB Vigilante, 27.5" x 2.6", Rear: WTB Trail Boss, 27.5" x 2.6"
Rear hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
457,0
508,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
598,0
618,0
638,0
658,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1176,0
1198,0
1219,0
1241,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
611,0
620,0
627,0
638,0
l
Reach
416,0
434,0
451,0
468,0
m
Standover height
650,0
673,0
703,0
738,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
-
-
-
-
