Orange Crush Pro 2018

MTB Enduro

Groupset

Shimano XT

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Front travel

150mm

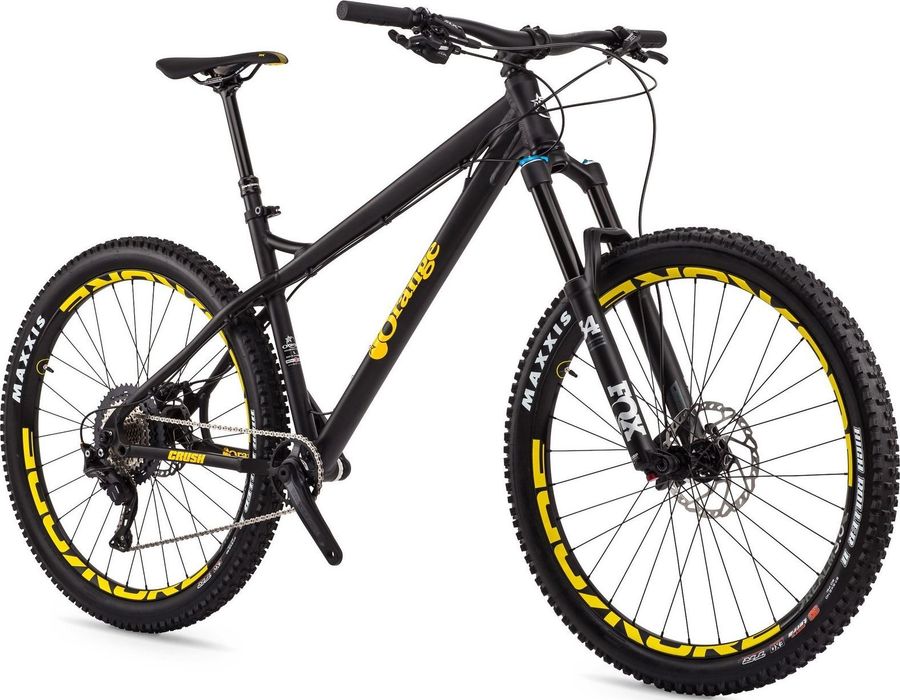

About the Orange Crush Pro 2018

The Orange Crush Pro 2018 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Crush Pro 2018 has 2 features listed below.

Dropper seatpost More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Strange 130, single lock-on, black
Pedals	None included

Components
Steam	Race Face Ride, stealth, 50mm length, 35mm clamp
Saddle	SDG Fly MTN, steel rail, black/grey
Headset	FPD, 44mm
Seatpost	Race Face Aeffect, 150mm drop
Handlebar	Race Face Chester, stealth, 780mm width
Brake lever	Shimano SLX
Brakes	Shimano SLX BR-M7000

Drivetrain
Chain	KMC
Crankset	Race Face Aeffect
Shifter	Shimano SLX, 11-speed
Bottom bracket	73mm
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g

Frameset
Frame	Aluminum
Front suspension	Fox 34 Float Performance

Wheels
Rims	Kore Realm 3.0, 32 hole
Rear hub	JoyTech, Boost rear
Front hub	JoyTech, Boost rear

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 30T

Cassette: 11-46T

Speeds: 11s

Gearing

Average

0,66

Average

2,73

Compared to similar bikes, the Orange Crush Pro 2018 has an excellent uphill performance and a regular downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	381,0	431,8	482,6	533,4
b Seat tube angle	73,5º	73,5º	73,5º	73,5º
c Top tube length	598,0	618,0	638,0	658,0
d Head tube length	100,0	110,0	120,0	130,0
e Head tube angle	65,0º	65,0º	65,0º	65,0º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1164,0	1186,0	1207,0	1229,0
i Chainstay length	428,0	428,0	428,0	428,0
j Bottom bracket drop	45,0	45,0	45,0	45,0
k Stack height	617,0	626,0	632,0	644,0
l Reach	414,0	432,0	450,0	466,0
m Standover height	650,0	673,0	703,0	738,0
x Bottom bracket height	310,0	310,0	310,0	310,0
y Front center	-	-	-	-
