Orange Crush Pro 2020

Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
150mm
Orange Crush Pro 2020

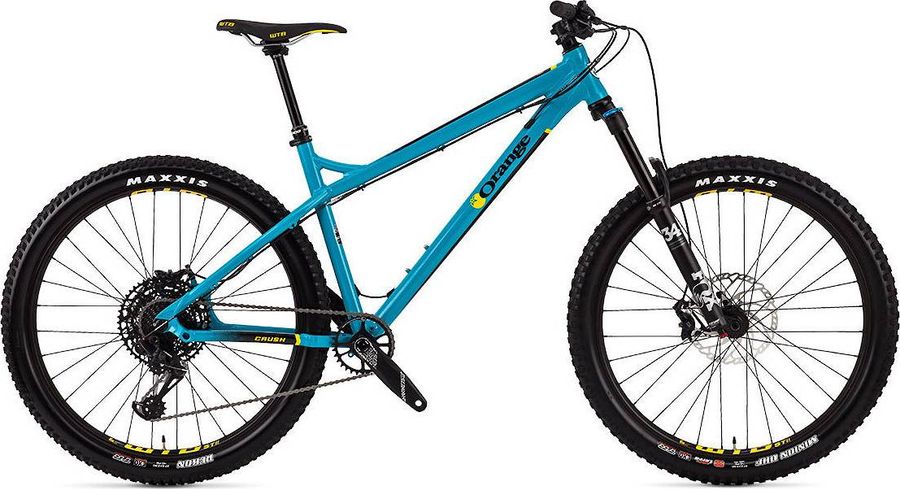

About the Orange Crush Pro 2020

The Orange Crush Pro 2020 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.


Features

The Orange Crush Pro 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
Kore Rivera Thermo, Option: Burgtec MK4 Composite
Components
Steam
Race Face Chester, 35mm clamp, 40mm length
Saddle
WTB Silverado Comp
Headset
FPD, ZS44/28.6 upper, EC44/40 lower, for tapered steerer
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Burgtec RideWide Enduro, 800mm width, 35mm bore
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Truvativ Descendant 6k Eagle DUB
Shifter
SRAM NX Eagle, 12-speed
Chain guide
None, Option: MRP 1x
Bottom bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
Fox 34 Performance
Wheels
Rims
WTB ST Light i30, 30mm internal width
Tires
Front: Maxxis Minion DHF, 3C, 27.5" x 2.6", Rear: Maxxis Rekon+, 27.5" x 2.6"
Rear hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
457,0
508,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
598,0
618,0
638,0
658,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1176,0
1198,0
1219,0
1241,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
611,0
620,0
627,0
638,0
l
Reach
416,0
434,0
451,0
468,0
m
Standover height
650,0
673,0
703,0
738,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
-
-
-
-
