Orange Five EVO S 2021

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

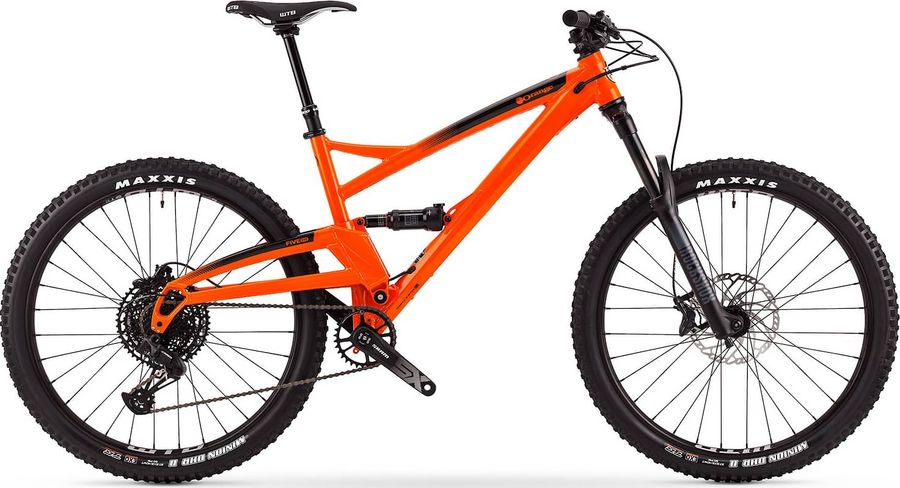

Orange Five EVO S 2021

About the Orange Five EVO S 2021

The Orange Five EVO S 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Five EVO S 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange Grappler, lock-on
Pedals
None, Option: Burgtec Penthouse Flat MK5
Components
Steam
Race Face Chester, 40mm length, 35mm bar clamp
Saddle
WTB Silverado Comp
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Race Face Chester, 780mm width, 35mm clamp diameter
Brake lever
Shimano Deore M6120
Brakes
Shimano BR-M6120 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M6120
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D02S Metal
Pad standard
D03S Resin
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed
Bottom bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox 35 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-TK-A1
Name
35 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
WTB ST Light i30, 30mm internal width
Tires
Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Rear hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Front hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
457,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
586,0
605,0
620,0
636,0
d
Head tube length
100,0
110,0
110,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1194,0
1216,0
1236,0
1260,0
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
592,0
601,0
601,0
619,0
l
Reach
445,0
462,0
483,0
498,0
m
Standover height
690,0
710,0
728,0
755,0
x
Bottom bracket height
320,0
320,0
320,0
320,0
y
Front center
-
-
-
-
