Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

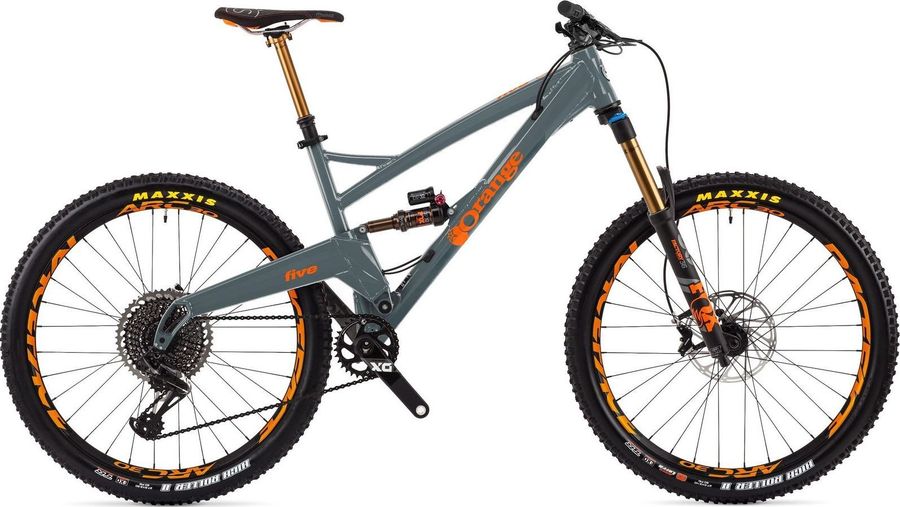

About the Orange Five Factory 2018
The Orange Five Factory 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Strange 130, single lock-on, black
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Turbine R, 50mm length, 35mm clamp
|
|---|---|
|
Saddle
|
SDG Fly MTN, chromoly rail, black/orange
|
|
Headset
|
Hope, 49mm, black
|
|
Seatpost
|
FOX Factory Transfer, 150mm drop
|
|
Handlebar
|
Race Face Next R, carbon, stealth, 800mm width
|
|
Brake lever
|
Hope Tech 3 E4
|
|
Brakes
|
Hope Tech 3 E4
|
|
Crankset
|
SRAM X01 Carbon Eagle
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed
|
|
Chain guide
|
None included
|
|
Bottom bracket
|
73mm
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory
|
|
Front suspension
|
Fox 36 Float Factory
|
|
Rims
|
Race Face Arc 30, grey
|
|---|---|
|
Tires
|
Front: Maxxis High Roller II 3c Exo TR, 2.4", Rear: Maxxis High Roller II Exo TR 2, 2.3"
|
|
Rear hub
|
Hope Pro 4, black
|
|
Front hub
|
Hope Pro 4, black
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
381,0
|
406,4
|
431,8
|
457,2
|
508,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
573,0
|
593,0
|
613,0
|
633,0
|
653,0
|
|
d
Head tube length
|
100,0
|
110,0
|
110,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1132,0
|
1154,0
|
1174,0
|
1197,0
|
1218,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
22,0
|
22,0
|
22,0
|
22,0
|
22,0
|
|
k
Stack height
|
597,0
|
606,0
|
606,0
|
624,0
|
633,0
|
|
l
Reach
|
402,0
|
420,0
|
440,0
|
455,0
|
472,0
|
|
m
Standover height
|
689,0
|
713,0
|
718,0
|
738,0
|
788,0
|
|
x
Bottom bracket height
|
333,0
|
333,0
|
333,0
|
333,0
|
333,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
