Orange Five Pro 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

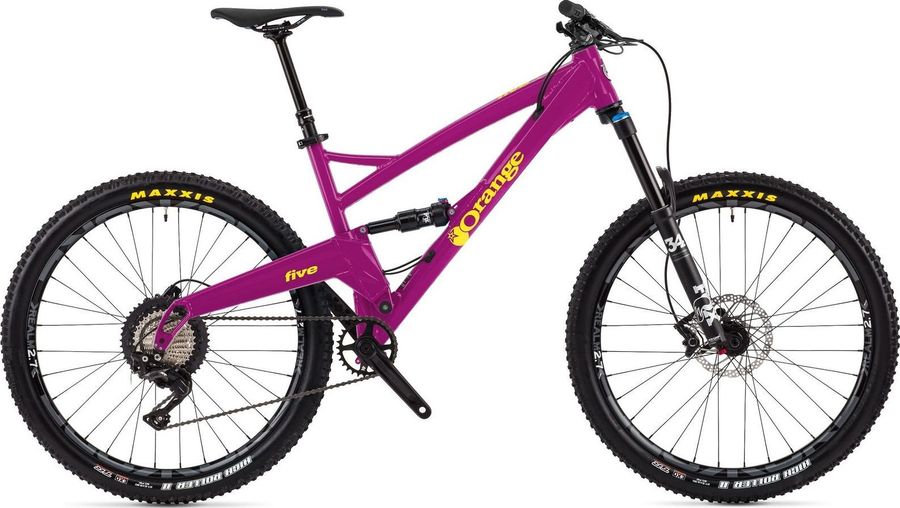

Orange Five Pro 2018

About the Orange Five Pro 2018

The Orange Five Pro 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Five Pro 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None included
Components
Steam
Race Face Ride, stealth, 50mm length, 35mm clamp
Saddle
Kore Conex
Headset
Cane Creek, 49mm
Seatpost
Race Face Aeffect Dropper, 150mm drop
Handlebar
Race Face Chester, stealth, 780mm width
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Race Face Aeffect, direct mount
Shifter
Shimano SLX, 11-speed
Chain guide
None included
Bottom bracket
Race Face, 73mm
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Kore Realm 3.0, 32 hole
Tires
Maxxis High Roller II Exo TR, 2.3"
Rear hub
JoyTech
Front hub
JoyTech

Geometry

Size XS SM MD LG XL
a
Seat tube length
381,0
406,4
431,8
457,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
573,0
593,0
613,0
633,0
653,0
d
Head tube length
100,0
110,0
110,0
130,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1132,0
1154,0
1174,0
1197,0
1218,0
i
Chainstay length
424,0
424,0
424,0
424,0
424,0
j
Bottom bracket drop
22,0
22,0
22,0
22,0
22,0
k
Stack height
597,0
606,0
606,0
624,0
633,0
l
Reach
402,0
420,0
440,0
455,0
472,0
m
Standover height
689,0
713,0
718,0
738,0
788,0
x
Bottom bracket height
333,0
333,0
333,0
333,0
333,0
y
Front center
-
-
-
-
-
