Orange Four RS Eagle Build 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

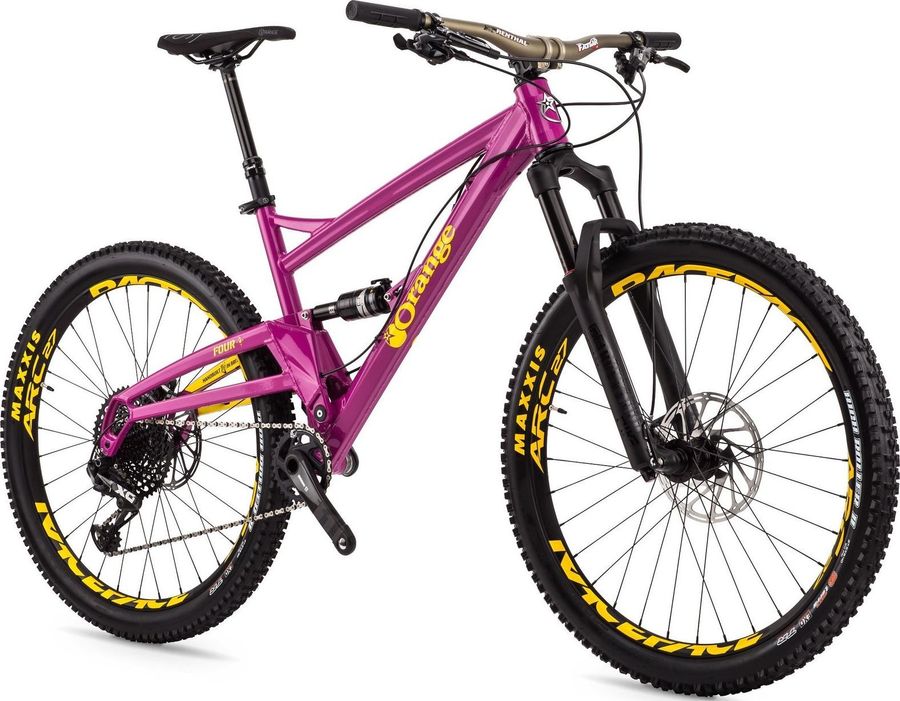

Orange Four RS Eagle Build 2018

About the Orange Four RS Eagle Build 2018

The Orange Four RS Eagle Build 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Four RS Eagle Build 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None included
Components
Steam
Renthal Apex, 50mm length, 35mm clamp
Saddle
SDG Fly MTN, steel rail, black/grey
Headset
Cane Creek, 49mm
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Handlebar
Renthal Fatbar, 800mm width
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM X1 Eagle, carbon
Shifter
SRAM GX Eagle, 12-speed
Chain guide
None included
Bottom bracket
SRAM GXP Team, 73mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Race Face Arc 27, grey
Tires
Front: Maxxis High Roller II 3c EXO TR, 2.4", Rear: Maxxis High Roller II EXO TR 2, 2.3"
Rear hub
Hope Pro 4, black or orange
Front hub
Hope Pro 4, black or orange

Geometry

Size XS SM MD LG XL
a
Seat tube length
381,0
381,0
431,8
457,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
568,0
588,0
608,0
628,0
648,0
d
Head tube length
100,0
100,0
110,0
110,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1110,0
1130,0
1151,0
1171,0
1194,0
i
Chainstay length
422,0
422,0
422,0
422,0
422,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
k
Stack height
586,0
586,0
596,0
596,0
614,0
l
Reach
386,0
419,0
436,0
456,0
471,0
m
Standover height
688,0
688,0
728,0
742,0
781,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
-
