Orange Four S 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

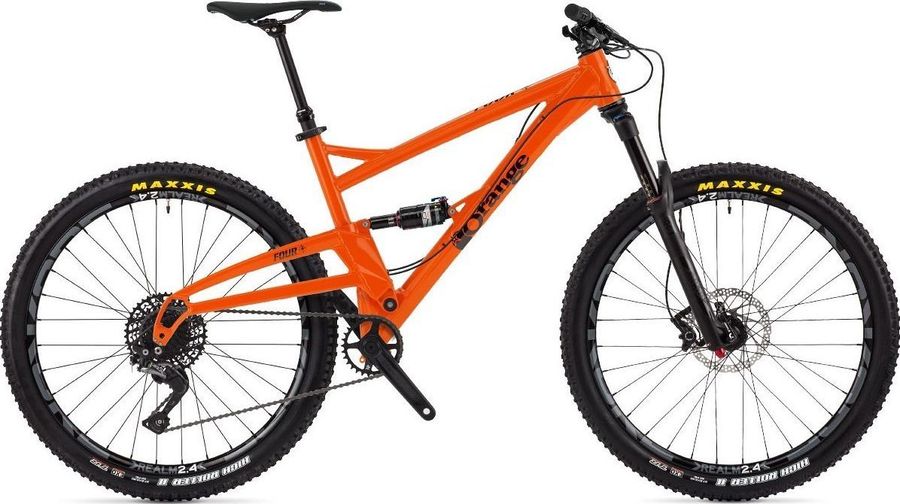

Orange Four S 2018

About the Orange Four S 2018

The Orange Four S 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Four S 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None included
Components
Steam
Kore Cubix, 50mm length, 35mm clamp
Saddle
Kore Conex
Headset
Cane Creek, 49mm
Seatpost
Kore Dropper, 150mm drop
Handlebar
Kore Durox, 780mm width
Brake lever
Shimano MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Aeffect
Shifter
Shimano SLX, 11-speed
Bottom bracket
Race Face, 73mm
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
Kore Realm 2.7, 32 hole
Tires
Maxxis High Roller II Exo TR, 2.3"
Rear hub
JoyTech
Front hub
JoyTech

Geometry

Size XS SM MD LG XL
a
Seat tube length
381,0
381,0
431,8
457,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
568,0
588,0
608,0
628,0
648,0
d
Head tube length
100,0
100,0
110,0
110,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1110,0
1130,0
1151,0
1171,0
1194,0
i
Chainstay length
422,0
422,0
422,0
422,0
422,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
25,0
k
Stack height
586,0
586,0
596,0
596,0
614,0
l
Reach
386,0
419,0
436,0
456,0
471,0
m
Standover height
688,0
688,0
728,0
742,0
781,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
-
