Orange P7 29 S 2021

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Front travel
140mm

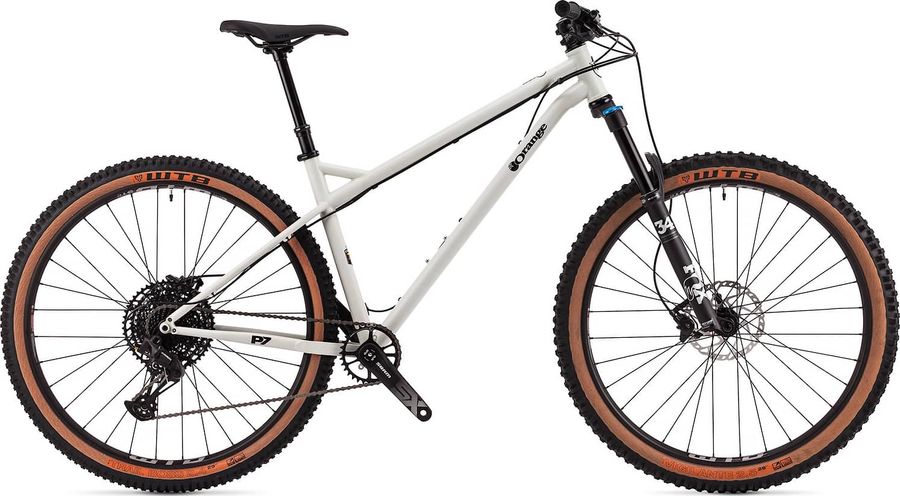

Orange P7 29 S 2021

About the Orange P7 29 S 2021

The Orange P7 29 S 2021 is a Hardtail Trail Mountain Bike with a steel frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange P7 29 S 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange Grappler, lock-on
Pedals
None, Option: Burgtec Penthouse Flat MK5
Components
Steam
Race Face Chester, 40mm length, 35mm bar clamp
Saddle
WTB Silverado Sport
Headset
FPD, ZS44/28.6 upper, EC44/40 lower
Seatpost
KS Rage-i dropper, 150mm drop
Handlebar
Race Face Chester, 780mm width, 35mm clamp diameter
Brake lever
Shimano MT401
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed
Bottom bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Chromoly
Front suspension
Fox 34 Float Performance
Wheels
Rims
WTB ST Light i30, 30mm internal width
Tires
Front: WTB Vigilante, 29" x 2.5", Rear: WTB Trail Boss, 29" x 2.4"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
620,0
647,0
676,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1,2e3
1228,0
1259,0
i
Chainstay length
443,0
443,0
443,0
j
Bottom bracket drop
72,0
72,0
72,0
k
Stack height
644,0
653,0
662,0
l
Reach
435,0
458,0
485,0
m
Standover height
690,0
708,0
749,0
x
Bottom bracket height
302,0
302,0
302,0
y
Front center
-
-
-
