Orange P7 S 2019

MTB Enduro
Groupset
Shimano SLX
Frame material
Steel
Wheel size
27,5"
Suspension type
Hardtail
Front travel
150mm

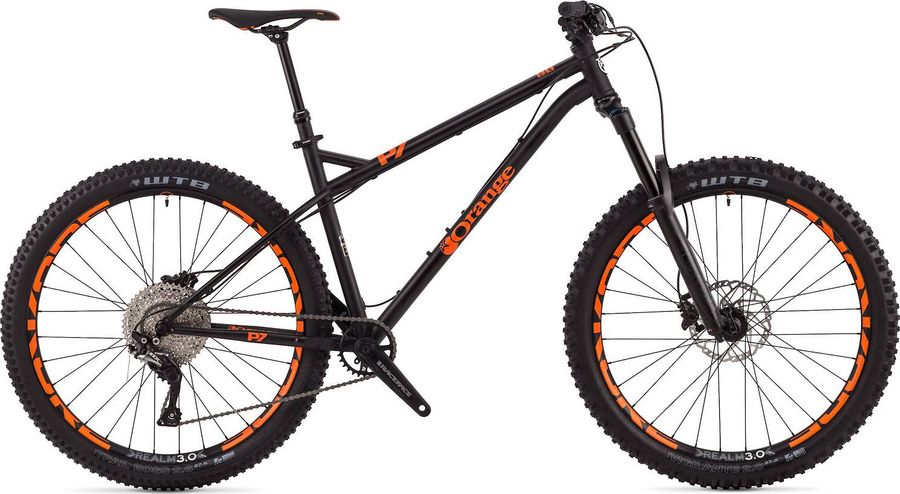

Orange P7 S 2019

About the Orange P7 S 2019

The Orange P7 S 2019 is a Hardtail Enduro Mountain Bike with a steel frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange P7 S 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on, black
Pedals
Kore Rivera Thermo
Components
Steam
Kore Cubix, 50mm
Saddle
Kore Conex
Headset
FPD 44mm
Seatpost
Kore Dropper, 150mm
Handlebar
Kore Durox, 35mm diameter, 780mm
Brake lever
Shimano MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Ride Cinch
Shifter
Shimano SLX, 11-speed
Bottom bracket
Race Face
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Cassette
Sunrace CSMS8 11-46T
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Chromoly
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Kore Realm 3.0
Tires
Front: WTB Vigilante 2.6", Rear: WTB Trail Boss 2.6"
Rear hub
Formula
Front hub
Formula

Geometry

Size SM MD LG XL
a
Seat tube length
406,4
431,8
457,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
606,4
626,4
646,4
666,4
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
1193,4
1213,4
1233,4
i
Chainstay length
436,4
436,4
436,4
436,4
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
625,4
636,4
646,4
652,4
l
Reach
428,4
446,4
462,4
481,4
m
Standover height
657,4
692,4
706,4
746,4
x
Bottom bracket height
301,0
301,0
301,0
301,0
y
Front center
-
-
-
-
