BikeWise

Orange P7 S 2020

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Steel
Wheel size
27,5"
Suspension type
Hardtail
Front travel
150mm
Orange P7 S 2020

About the Orange P7 S 2020

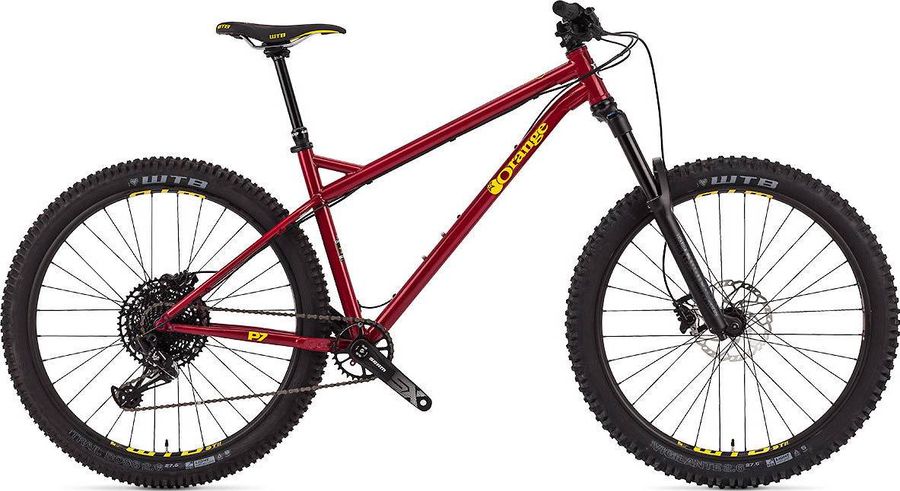

The Orange P7 S 2020 is a Hardtail Enduro Mountain Bike with a steel frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange P7 S 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
Kore Rivera Thermo, Option: Burgtec MK4 Composite
Components
Steam
Race Face Chester, 35mm clamp, 40mm length
Saddle
WTB Silverado Comp
Headset
FPD, ZS44/28.6 upper, EC44/40 lower, for tapered steerer
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Race Face Chester Stealth, 780mm width, 35mm bore
Brake lever
Shimano MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed
Chain guide
None, Option: MRP 1x
Bottom bracket
SRAM DUB, 73mm
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
Chromoly
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST Light i30, 30mm internal width
Tires
Front: WTB Vigilante, 27.5" x 2.6", Rear: WTB Trail Boss, 27.5" x 2.6"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
457,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
602,0
620,0
646,0
675,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1174,0
1195,0
1223,0
1253,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
64,0
64,0
64,0
64,0
k
Stack height
613,0
622,0
631,0
640,0
l
Reach
425,0
441,0
465,0
491,0
m
Standover height
649,0
684,0
698,0
738,0
x
Bottom bracket height
291,0
291,0
291,0
291,0
y
Front center
-
-
-
-
