BikeWise

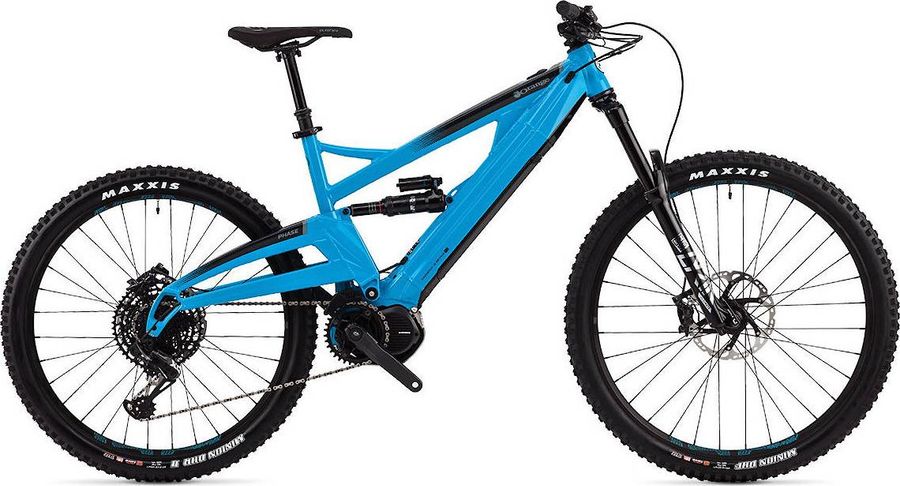

Orange Phase RS 2020

E-Bike
MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm
Orange Phase RS 2020

About the Orange Phase RS 2020

The Orange Phase RS 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Phase RS 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Hope Tech, 35mm clamp, 35mm length
Saddle
SDG Radar, steel rails, black/black
Battery
Shimano STEPS E8035, integrated
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech
Seatpost
FOX Transfer Performance Elite dropper, 150mm drop, Option: FOX Transfer Factory dropper, 150mm or 170mm drop
Handlebar
Renthal Fatbar, 800mm width, 35mm bore
Brake lever
Shimano XT Trail, Option: Hope Tech 3 E4,
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano E8050
Motor
Shimano STEPS E8000, 70Nm max torque
Shifter
SRAM GX Eagle, 12-speed, Single Click
Chain guide
Shimano CDE80, Option: MRP 1x E-Bike
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
e*thirteen TRS, 30mm inner width (29" front, 27.5" rear), Option: Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Rear hub
Hope Pro 4, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Hope Pro 4, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
623,0
643,0
663,0
d
Head tube length
110,0
110,0
120,0
e
Head tube angle
64,0º
64,0º
64,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1246,0
1266,0
1288,0
i
Chainstay length
437,0
437,0
437,0
j
Bottom bracket drop
-
-
-
k
Stack height
620,0
627,0
636,0
l
Reach
465,0
486,0
503,0
m
Standover height
722,0
750,0
773,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
-
-
-
