Orange Stage 4 Pro 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

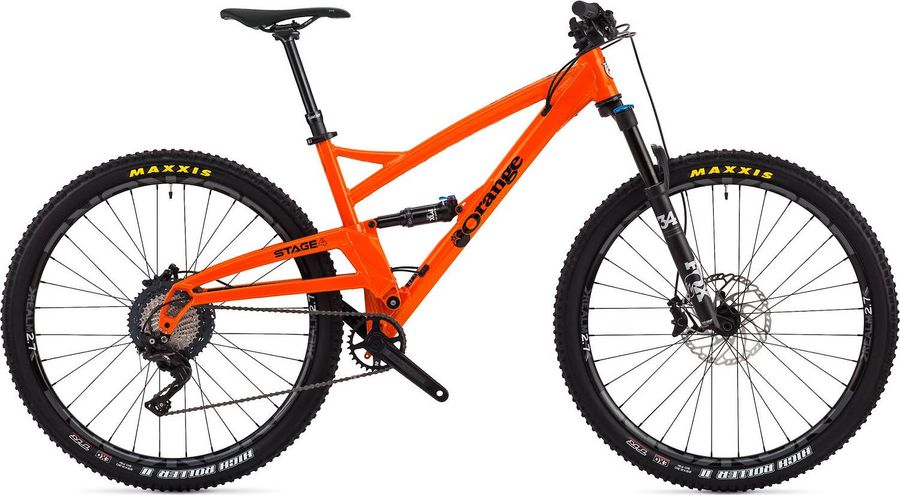

Orange Stage 4 Pro 2019

About the Orange Stage 4 Pro 2019

The Orange Stage 4 Pro 2019 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Stage 4 Pro 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on
Components
Steam
Race Face Chester, 40mm
Saddle
Kore Conex
Headset
Cane Creek 49mm
Seatpost
SDG Tellis
Handlebar
Race Face Chester, 780mm, 35mm diameter
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
SRAM Descendant 6K DUB
Shifter
SRAM NX Eagle, 12-speed
Bottom bracket
SRAM DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
Kore Realm 3.0
Tires
Maxxis High Roller II 2.3", EXO, TR
Rear hub
Joytech
Front hub
Joytech

Geometry

Size MD LG XL
a
Seat tube length
431,8
475,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
607,8
627,8
647,8
d
Head tube length
110,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1164,8
1185,8
1205,8
i
Chainstay length
432,8
432,8
432,8
j
Bottom bracket drop
39,0
39,0
39,0
k
Stack height
603,8
612,8
621,8
l
Reach
441,8
458,8
475,8
m
Standover height
712,8
732,8
780,8
x
Bottom bracket height
335,0
335,0
335,0
y
Front center
-
-
-
