BikeWise

Orange Stage 5 Factory 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
135mm

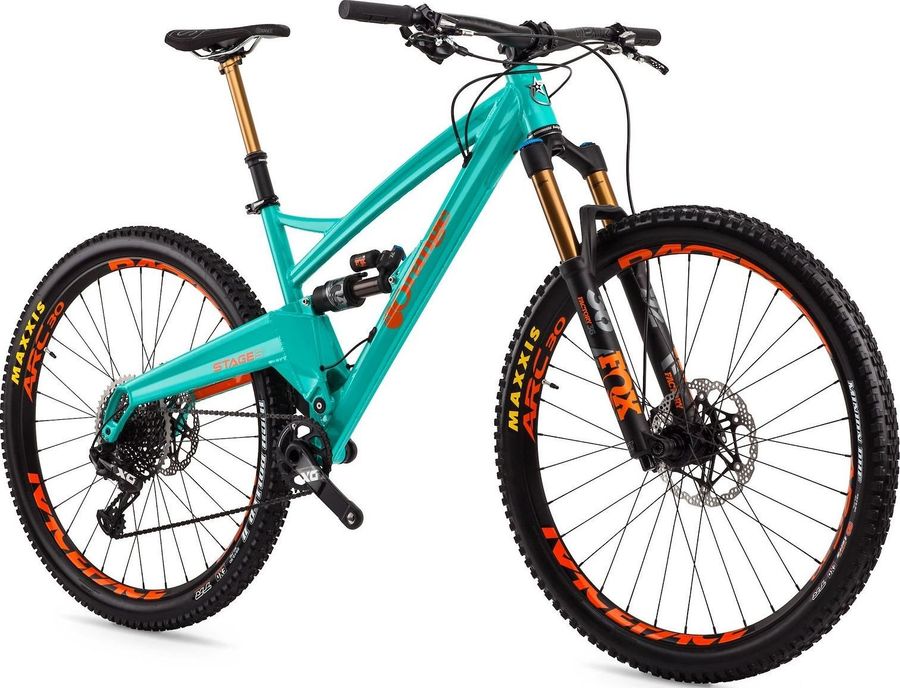

Orange Stage 5 Factory 2018

About the Orange Stage 5 Factory 2018

The Orange Stage 5 Factory 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Stage 5 Factory 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on, black or orange
Pedals
None included
Components
Steam
Race Face Turbine R, 50mm length
Saddle
SDG Fly MTN, cromo rail, black/grey
Headset
Hope, 49mm, black or orange
Seatpost
Fox Factory Transfer, 150mm drop
Handlebar
Race Face Next R Carbon Stealth, 800mm width
Brake lever
Hope Tech 3 E4
Brakes
Hope Tech 3 E4
Drivetrain
Crankset
SRAM X01 Carbon Eagle
Shifter
SRAM X01 Eagle, 12-speed
Chain guide
Not included
Bottom bracket
SRAM GXP Team
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Aluminum
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis Minion DHF, 2.3" 3c EXO TR, Rear: Maxxis Minion High Roller II, 2.0"
Rear hub
Hope Pro 4, Boost rear, black
Front hub
Hope Pro 4, Boost rear, black

Geometry

Size MD LG XL
a
Seat tube length
431,8
457,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
612,8
632,8
652,8
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1180,8
1201,8
1222,8
i
Chainstay length
442,8
442,8
442,8
j
Bottom bracket drop
39,0
39,0
39,0
k
Stack height
621,8
630,8
639,8
l
Reach
433,8
450,8
467,8
m
Standover height
717,8
739,8
792,8
x
Bottom bracket height
335,0
335,0
335,0
y
Front center
-
-
-
