Orange Stage 5 Factory 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
135mm

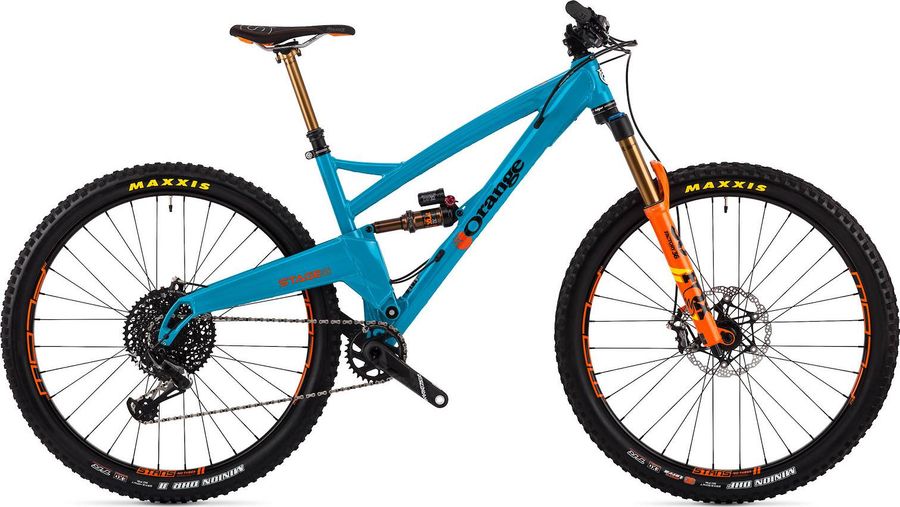

Orange Stage 5 Factory 2019

About the Orange Stage 5 Factory 2019

The Orange Stage 5 Factory 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Stage 5 Factory 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on
Components
Steam
Burgtec MK2 Enduro, black, 50mm
Saddle
SDG Fly MTN, cromo rails, black/grey
Headset
Hope 49mm
Seatpost
FOX Factory Transfer 150mm, Kashima coating
Handlebar
Burgtec RideWide Carbon, 800mm, 35mm diameter
Brake lever
Hope Tech 3 E4
Brakes
Hope Tech 3 E4
Drivetrain
Crankset
SRAM Descendant Carbon Eagle
Shifter
SRAM GX Eagle, 12-speed
Bottom bracket
SRAM GXP
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
Stans Flow Mk3
Tires
Front: Maxxis Minion DHF 2.3", 3C, EXO, TR, Rear: Maxxis High Roller II 2.3", EXO, TR
Rear hub
Hope Pro 4
Front hub
Hope Pro 4

Geometry

Size MD LG XL
a
Seat tube length
431,8
475,2
508,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
612,8
632,8
652,8
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1180,8
1201,8
1222,8
i
Chainstay length
442,8
442,8
442,8
j
Bottom bracket drop
39,0
39,0
39,0
k
Stack height
621,8
630,8
639,8
l
Reach
433,8
450,8
467,8
m
Standover height
717,8
739,8
792,8
x
Bottom bracket height
335,0
335,0
335,0
y
Front center
-
-
-
