Orange Stage 5 XTR 2020

MTB Trail
Groupset
Shimano XTR
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
135mm

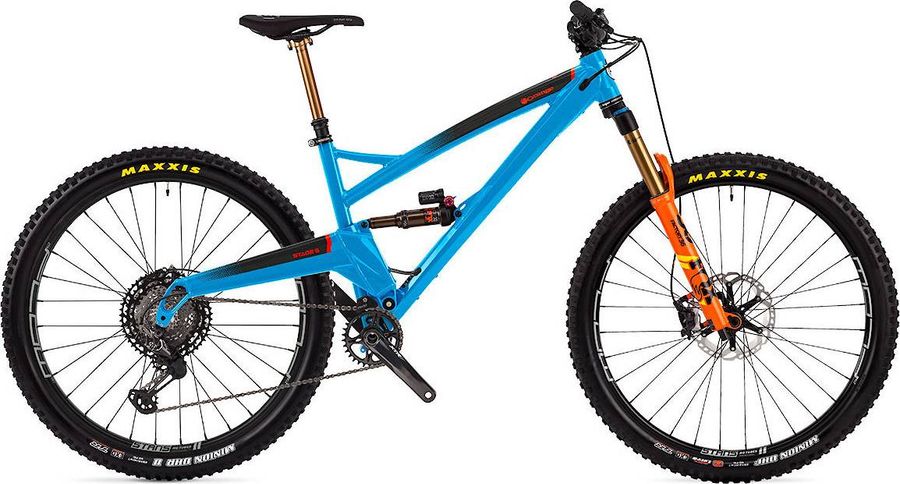

Orange Stage 5 XTR 2020

About the Orange Stage 5 XTR 2020

The Orange Stage 5 XTR 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XTR drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Stage 5 XTR 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Burgtec MK2 Enduro, 35mm
Saddle
SDG Radar, CrMo rails, black/black
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower for tapered steerer
Seatpost
FOX Transfer Factory dropper, 150mm or 170mm drop
Handlebar
Burgtec RideWide Carbon, 800mm width
Brake lever
Shimano XTR
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR
Shifter
Shimano XTR, 12-speed
Chain guide
MRP 1x
Bottom bracket
Shimano HOLLOWTECH II, 73mm
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 29" x 2.4" WT
Rear hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
618,0
638,0
658,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1240,0
1262,0
1284,0
i
Chainstay length
459,0
459,0
459,0
j
Bottom bracket drop
49,0
49,0
49,0
k
Stack height
624,0
633,0
642,0
l
Reach
461,0
479,0
497,0
m
Standover height
718,0
740,0
793,0
x
Bottom bracket height
325,0
325,0
325,0
y
Front center
-
-
-
