Orange Stage 6 Pro GX Eagle Build 2018

MTB Enduro
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

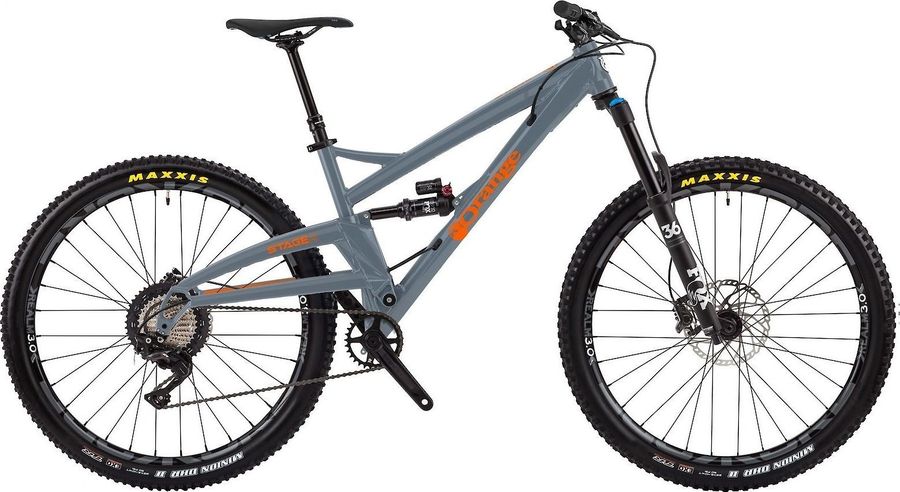

Orange Stage 6 Pro GX Eagle Build 2018

About the Orange Stage 6 Pro GX Eagle Build 2018

The Orange Stage 6 Pro GX Eagle Build 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Stage 6 Pro GX Eagle Build 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on, black or orange
Pedals
None included
Components
Steam
Race Face Chester, 40mm length, 35mm clamp
Saddle
Kore Conex
Headset
Cane Creek, 49mm
Seatpost
Race Face Aeffect, 150mm drop
Handlebar
Race Face Chester Stealth, 780mm length
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Truvativ Descendant 6k Eagle
Shifter
SRAM GX Eagle, 12-speed
Chain guide
Not included
Bottom bracket
SRAM GXP
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
Kore Realm 3.0
Tires
Maxxis Minion DHR II, 2.4" EXO TR
Rear hub
Joytech, Boost rear
Front hub
Joytech, Boost rear

Geometry

Size MD LG XL
a
Seat tube length
431,8
457,2
508,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
617,8
637,8
657,8
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1220,8
1242,8
1263,8
i
Chainstay length
447,8
447,8
447,8
j
Bottom bracket drop
39,0
39,0
39,0
k
Stack height
630,8
640,8
649,8
l
Reach
441,8
459,8
476,8
m
Standover height
730,8
741,8
794,8
x
Bottom bracket height
335,0
335,0
335,0
y
Front center
-
-
-
