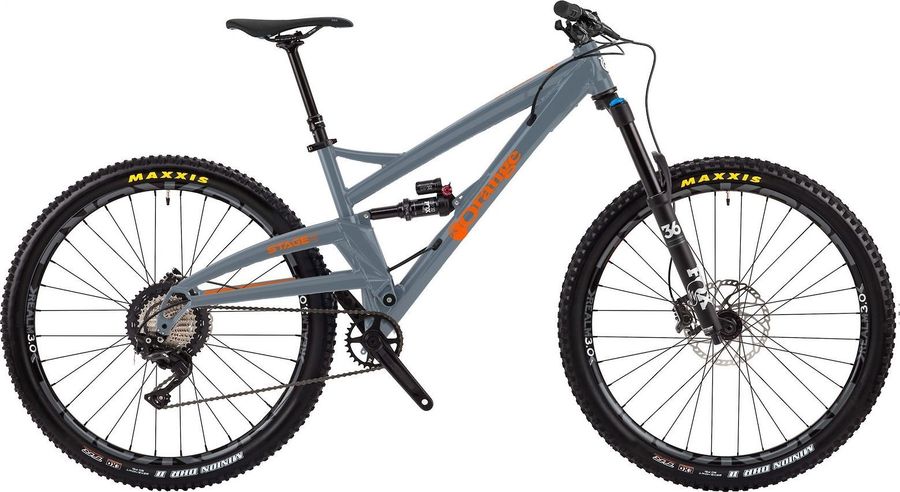

Orange Stage 6 Pro Shimano XT Build 2018

MTB Enduro

Groupset

Shimano XT

Frame material

Alloy

Wheel size

29"

Suspension type

Full suspension

Front travel

160mm

Rear travel

150mm

About the Orange Stage 6 Pro Shimano XT Build 2018

The Orange Stage 6 Pro Shimano XT Build 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Stage 6 Pro Shimano XT Build 2018 has 2 features listed below.

Dropper seatpost More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Strange 130 Lock-on, black or orange
Pedals	None included

Components
Steam	Race Face Chester, 40mm length, 35mm clamp
Saddle	Kore Conex
Headset	Cane Creek, 49mm
Seatpost	Race Face Aeffect Dropper, 150mm drop
Handlebar	Race Face Chester Stealth, 780mm length
Brake lever	Shimano SLX
Brakes	Shimano SLX BR-M7000

Drivetrain
Crankset	Race Face Aeffect, direct mount
Shifter	Shimano SLX, 11-speed
Chain guide	Not included
Bottom bracket	Race Face
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g
Chain	SRAM PC-1110 259 g
Chain connector PowerLock Chain length links 114 links Color inner link Grey Color outer link Grey Compat speed 11s Inner link finish Polished Model CN-1110-A1 Name PC-1110 Chain Outer link finish Polished Pin variant Solid Pin Weight based on 114 links Weight 259

Frameset
Frame	Aluminum
Rear suspension	Fox Float DPX2 Performance
Front suspension	Fox 36 Float Performance

Wheels
Rims	Kore Realm 3.0
Tires	Maxxis Minion DHR II, 2.4" EXO TR
Rear hub	Joytech, Boost rear
Front hub	Joytech, Boost rear

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 30T

Cassette: 11-46T

Speeds: 11s

Gearing

Average

0,66

Average

2,73

Compared to similar bikes, the Orange Stage 6 Pro Shimano XT Build 2018 has an excellent uphill performance and a regular downhill performance.

Report incorrect information

Geometry

Size	MD	LG	XL
a Seat tube length	431,8	457,2	508,0
b Seat tube angle	74,5º	74,5º	74,5º
c Top tube length	617,8	637,8	657,8
d Head tube length	100,0	110,0	120,0
e Head tube angle	65,5º	65,5º	65,5º
f Rake	-	-	-
g Trail	-	-	-
h Wheelbase	1220,8	1242,8	1263,8
i Chainstay length	447,8	447,8	447,8
j Bottom bracket drop	39,0	39,0	39,0
k Stack height	630,8	640,8	649,8
l Reach	441,8	459,8	476,8
m Standover height	730,8	741,8	794,8
x Bottom bracket height	335,0	335,0	335,0
y Front center	-	-	-
