Orange Stage 6 RS Shimano XT Build 2018

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

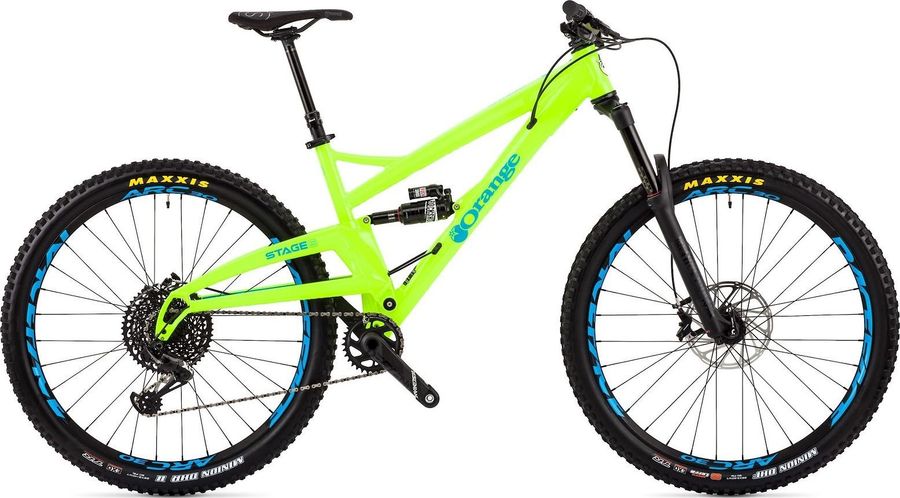

Orange Stage 6 RS Shimano XT Build 2018

About the Orange Stage 6 RS Shimano XT Build 2018

The Orange Stage 6 RS Shimano XT Build 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orange Stage 6 RS Shimano XT Build 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130 Lock-on, black or orange
Pedals
None included
Components
Steam
Hope Stem, 35mm
Saddle
SDG Fly MTN, steel rail, black/grey
Headset
Cane Creek, 49mm
Seatpost
RockShox Reverb with 1x remote, 125mm or 150mm drop
Handlebar
Renthal Fat Bar, 800mm width
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Hope, black
Shifter
Shimano SLX, 11-speed
Chain guide
Not included
Bottom bracket
Hope 30mm, black
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Monarch Plus RC3
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
190x51, 200x51, 200x57, 216x63
Model
RS-MNRP-RC3-B4
Name
Monarch Plus RC3
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
Race Face Arc 30, grey
Tires
Front: Maxxis Minion DHF, 2.5" 3c EXO TR, Rear: Maxxis Minion DHR II, 2.4" EXO T
Rear hub
Hope Pro 4, black, Boost rear
Front hub
Hope Pro 4, black, Boost rear

Geometry

Size MD LG XL
a
Seat tube length
431,8
457,2
508,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
617,8
637,8
657,8
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1220,8
1242,8
1263,8
i
Chainstay length
447,8
447,8
447,8
j
Bottom bracket drop
39,0
39,0
39,0
k
Stack height
630,8
640,8
649,8
l
Reach
441,8
459,8
476,8
m
Standover height
730,8
741,8
794,8
x
Bottom bracket height
335,0
335,0
335,0
y
Front center
-
-
-
