Orange Stage EVO Pro 2021

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

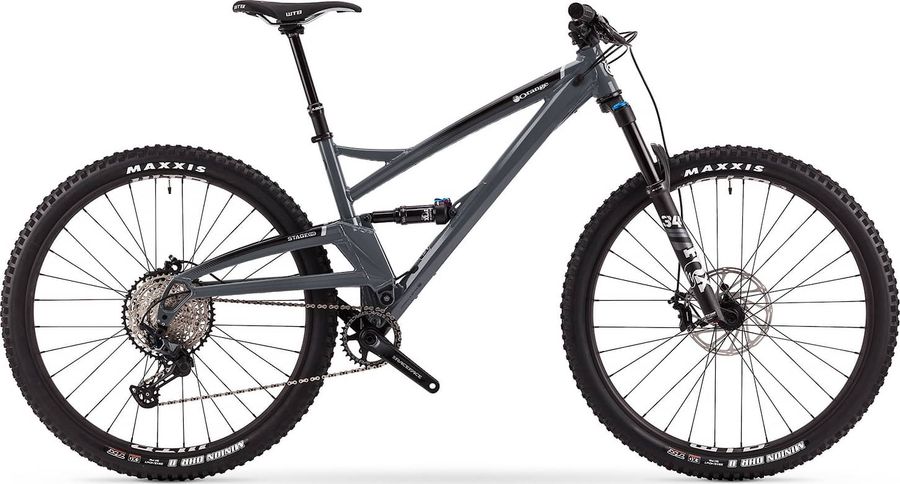

Orange Stage EVO Pro 2021

About the Orange Stage EVO Pro 2021

The Orange Stage EVO Pro 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Stage EVO Pro 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange Grappler, lock-on
Pedals
None, Option: Burgtec Penthouse Flat MK5
Components
Steam
Burgtec Enduro, 42.5mm length
Saddle
WTB Silverado Comp
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Burgtec RideWide Enduro, 800mm width
Brake lever
SRAM Guide RE, Option: Shimano Deore XT Trail, Option: Shimano SLX Trail
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Race Face Aeffect
Shifter
Shimano SLX M7100, 12-speed
Chain guide
None, Option: OneUp upper slider
Bottom bracket
Race Face, 73mm
Chain
KMC 12v
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
WTB ST Light i30, 30mm internal width, Options: e*thirteen TRS, 30mm width, Stan's NoTubes Flow MK3
Tires
Maxxis Minion DHR II, EXO, TR, 29" x 2.4"
Rear hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver, Option: Hope Tech Pro 4
Front hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver, Option: Hope Tech Pro 4

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
457,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
576,0
608,0
616,0
634,0
d
Head tube length
100,0
100,0
110,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1196,0
1216,0
1238,0
1260,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
54,0
54,0
54,0
54,0
k
Stack height
618,0
618,0
628,0
636,0
l
Reach
438,0
458,0
476,0
494,0
m
Standover height
688,0
707,0
734,0
760,0
x
Bottom bracket height
320,0
320,0
320,0
320,0
y
Front center
-
-
-
-
