Orange Surge 29 XTR 2020

E-Bike
MTB Enduro
Groupset
Shimano XTR
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

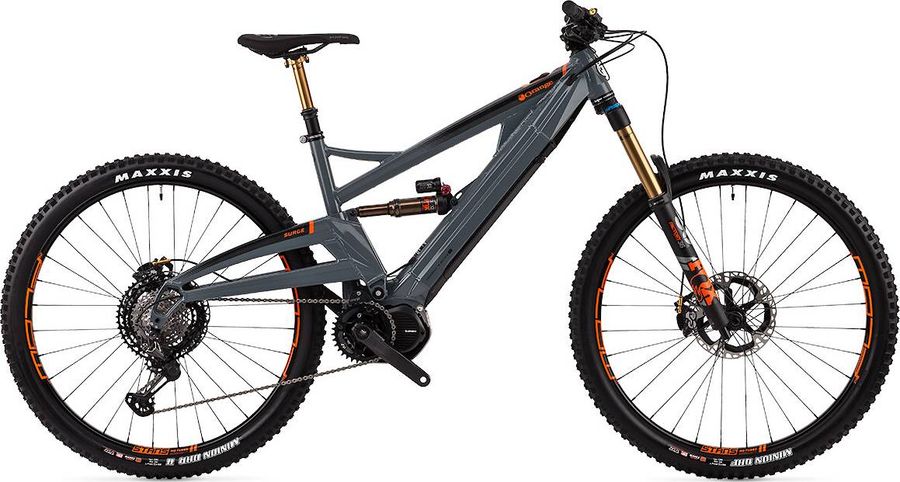

Orange Surge 29 XTR 2020

About the Orange Surge 29 XTR 2020

The Orange Surge 29 XTR 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Surge 29 XTR 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Burgtec MK2 Enduro, 35mm length
Saddle
SDG Radar, CrMo rails, black/black
Battery
Shimano STEPS E8035, integrated
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seatpost
FOX Transfer Factory dropper, 150mm or 170mm drop
Handlebar
Renthal Fatbar, 800mm width, 35mm bore
Brake lever
Shimano Saint
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
Shimano E8050
Motor
Shimano STEPS E8000, 70Nm max torque
Shifter
Shimano XTR, 12-speed
Chain guide
MRP 1x E-Bike
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 29" x 2.4"
Rear hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
623,0
643,0
663,0
d
Head tube length
110,0
110,0
120,0
e
Head tube angle
64,0º
64,0º
64,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1264,0
1284,0
1306,0
i
Chainstay length
455,0
455,0
455,0
j
Bottom bracket drop
31,0
31,0
31,0
k
Stack height
628,0
628,0
636,0
l
Reach
465,0
486,0
503,0
m
Standover height
722,0
750,0
773,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
-
-
-
