BikeWise

Orange Surge S 2021

E-Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm

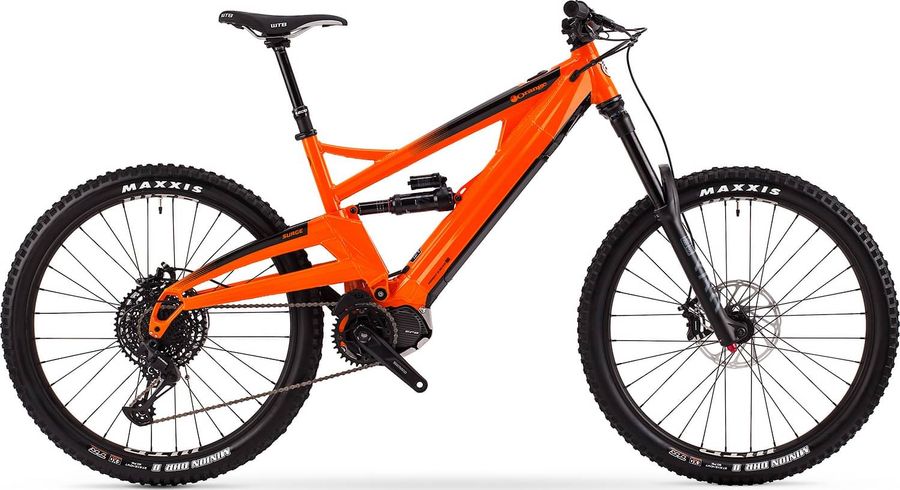

Orange Surge S 2021

About the Orange Surge S 2021

The Orange Surge S 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Surge S 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange Grappler, lock-on
Pedals
None, Option: Burgtec Penthouse Flat MK5
Components
Steam
Race Face Chester, 40mm length, 35mm bar clamp
Saddle
WTB Silverado Comp
Battery
Shimano STEPS E8035, integrated, removable
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seatpost
SDG Tellis dropper, 150mm drop
Handlebar
Race Face Chester, 800mm width, 35mm clamp diameter
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Shimano M600, 165mm length
Motor
Shimano STEPS EP8, 85Nm max torque, 250W
Shifter
SRAM SX Eagle, 12-speed, Single Click
Chain guide
Shimano CDE80 upper slider
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
WTB ST Light i30, 30mm inner width
Tires
Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4"
Rear hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Front hub
Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
457,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
602,0
621,0
640,0
661,0
d
Head tube length
120,0
120,0
130,0
140,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1232,0
1252,0
1274,0
1296,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
13,0
13,0
13,0
13,0
k
Stack height
621,0
621,0
630,0
639,0
l
Reach
448,0
468,0
486,0
503,0
m
Standover height
722,0
730,0
758,0
781,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
-
-
-
-
