Orange Switch 6 Factory 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
145mm

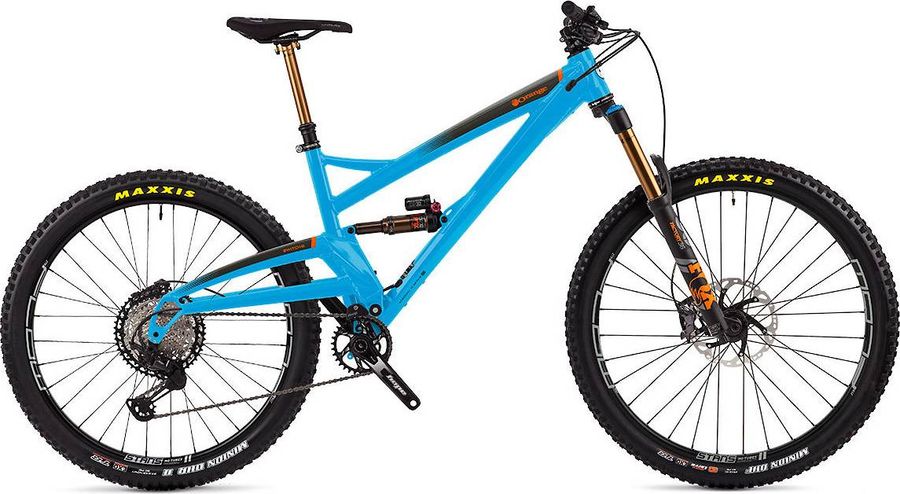

Orange Switch 6 Factory 2020

About the Orange Switch 6 Factory 2020

The Orange Switch 6 Factory 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orange Switch 6 Factory 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
None, Option: Burgtec MK4 Composite
Components
Steam
Hope, 35mm bore, 35mm length, Option: Burgtec, 35mm
Saddle
SDG Radar, steel rails, black/black
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower, for tapered steerer
Seatpost
FOX Transfer Factory dropper, 150mm or 170mm drop
Handlebar
Renthal Fatbar, 800mm width, Option: Renthal Carbon Fatbar, 800mm width
Brake lever
Shimano XT Trail, Option: Hope Tech 3 E4
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Hope Tech, black
Shifter
Shimano XT, 12-speed
Chain guide
MRP 1x
Bottom bracket
Hope Tech, 30mm spindle, black, 73mm
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Aluminum
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
Stan's NoTubes Flow MK3 (29" front, 27.5" rear)
Tires
Maxxis Minion DHR II, EXO, 2.4" (29" front, 27.5" rear)
Rear hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear
Front hub
DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size MD LG XL
a
Seat tube length
432,0
457,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
623,0
643,0
663,0
d
Head tube length
100,0
110,0
120,0
e
Head tube angle
64,0º
64,0º
64,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
1248,0
1270,0
1292,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
631,0
640,0
650,0
l
Reach
465,0
482,0
501,0
m
Standover height
731,0
742,0
795,0
x
Bottom bracket height
330,0
330,0
330,0
y
Front center
-
-
-
