BikeWise

Orange Zest 26 2020

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

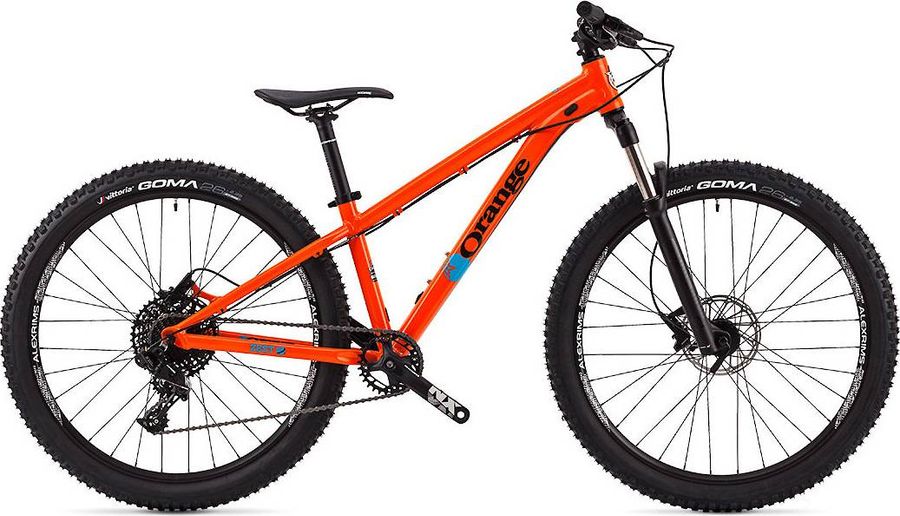

Orange Zest 26 2020

About the Orange Zest 26 2020

The Orange Zest 26 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Orange Zest 26 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Strange 130, single lock-on, black
Pedals
FPD Mini Resin
Components
Steam
Strange Stalk, 50mm length
Saddle
SDG Fly Jr.
Headset
FPD, ZS44/28.6 upper, ZS44/30 lower
Seatpost
Strange, 400mm length
Handlebar
Strange Riser, 780mm width, 0.5" rise
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX, 165mm length
Shifter
SRAM SL 500, trigger, 11-speed
Bottom bracket
SRAM NX PowerSpline, 68mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
SRAM NX
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Frame
Aluminum
Front suspension
RockShox 30 Silver Coil, Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-30S-TK-A3
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Alexrims MD23
Tires
Vittoria Goma, folding, 26" x 2.25"
Rear hub
Shimano 475
Front hub
Shimano 475

Geometry

Size One Size
a
Seat tube length
330,0
b
Seat tube angle
74,0º
c
Top tube length
553,0
d
Head tube length
100,0
e
Head tube angle
68,0º
f
Rake
42,0
g
Trail
93,0
h
Wheelbase
1063,0
i
Chainstay length
418,0
j
Bottom bracket drop
48,0
k
Stack height
572,0
l
Reach
388,0
m
Standover height
642,0
x
Bottom bracket height
295,0
y
Front center
650,0
