Orbea ALMA H50 2022

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

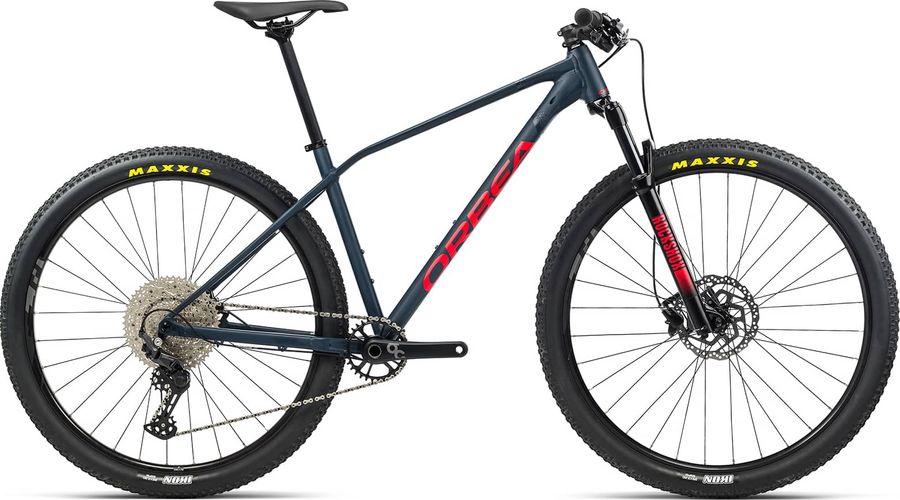

Orbea ALMA H50 2022

About the Orbea ALMA H50 2022

The Orbea ALMA H50 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include internal routing, boost 148, and hydraulic disc brakes.

Features

The Orbea ALMA H50 2022 has 3 features listed below.
cabeamento-interno
Internal routing More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Alloy 31.8mm interface 7º
Saddle
Selle Royal 2058 DRN
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seatpost
Alloy 27.2 Offset 0
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
OC1 Alloy forged Boost 32t
Shifter
Shimano Deore M5100
Bottom bracket
BSA, 73mm, threaded
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing.
Front suspension
RockShox 30 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30S-TK-A4
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Maxxis Ikon 2.20" FB 60 TPI Dual

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
445,0
483,0
533,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
562,0
596,0
620,0
650,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1092,0
1127,0
1152,0
1184,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
602,0
612,0
621,0
635,0
l
Reach
395,0
426,0
448,0
474,0
m
Standover height
721,0
735,0
791,0
829,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
664,0
699,0
724,0
756,0
