Orbea ALMA M LTD 2021
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Rigid

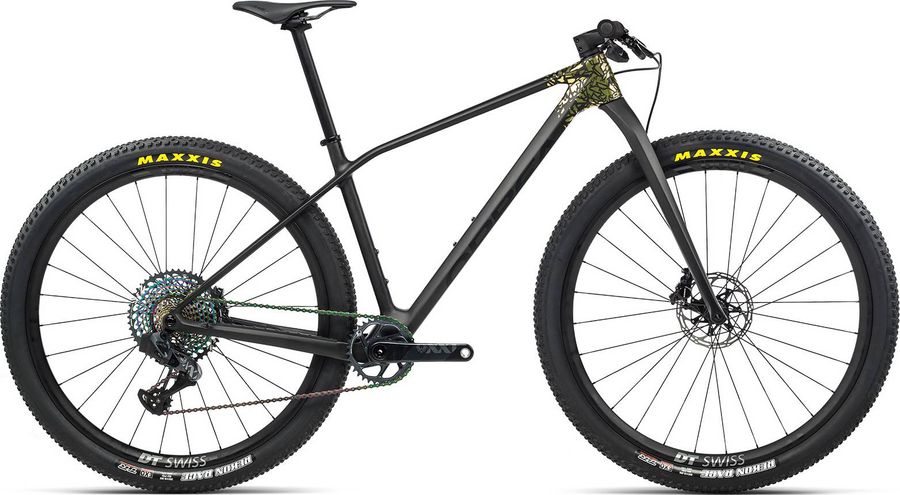

About the Orbea ALMA M LTD 2021
The Orbea ALMA M LTD 2021 is a Rigid Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
OC3 31.8mm interface -8º
|
|---|---|
|
Saddle
|
Selle Italia SLR Boost Fill Carbon Keramic Rail Ø7 x 9 mm
|
|
Battery
|
SRAM Powerpack
|
|
Headset
|
Acros 1-1/8 - 1-1/2" Semi-intergated Block Lock
|
|
Seatpost
|
OC2 Carbon 27.2 Offset 0
|
|
Handlebar
|
OC3 Carbon Flat 31.8mm 760mm
|
|
Brakes
|
SRAM Ultimate
|
|
Crankset
|
SRAM XX1 Eagle Dub Grey Boost 34t
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle AXS
|
|
Chain guide
|
Orbea Alma Carbon OMR & OMX. Compatible up to 36T
|
|
Chain
|
SRAM Eagle XX1 Rainbow
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle AXS
12s
|
|
|
|
|
Front suspension
|
Orbea Spirit Rigid Carbon 15x110
|
|---|---|
|
Frame
|
Orbea Alma Carbon OMX, Boost 12x148, PF BB, Internal cable routing.
|
|
Rims
|
DT Swiss XRC-1200 Spline 30c TLR 15/110mm CL
|
|---|---|
|
Tires
|
Maxxis Rekon 2.35" 120 TPI Exo TLR
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
445,0
|
483,0
|
533,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
559,0
|
593,0
|
618,0
|
647,0
|
|
d
Head tube length
|
90,0
|
100,0
|
110,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
104,0
|
104,0
|
104,0
|
104,0
|
|
h
Wheelbase
|
1083,0
|
1118,0
|
1144,0
|
1175,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
61,0
|
61,0
|
61,0
|
61,0
|
|
k
Stack height
|
593,0
|
602,0
|
612,0
|
625,0
|
|
l
Reach
|
395,0
|
426,0
|
448,0
|
474,0
|
|
m
Standover height
|
693,0
|
729,0
|
749,0
|
819,0
|
|
x
Bottom bracket height
|
309,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
660,0
|
695,0
|
721,0
|
752,0
|
