Orbea ALMA M TEAM 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

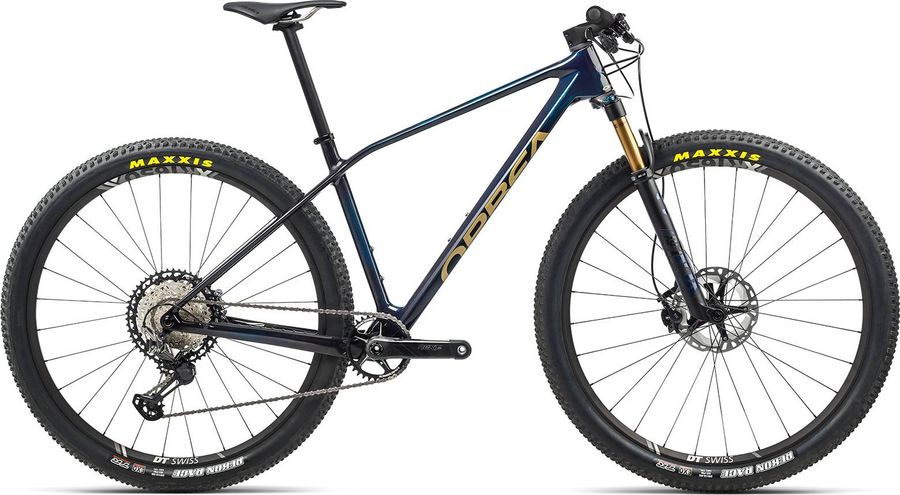

Orbea ALMA M TEAM 2021

About the Orbea ALMA M TEAM 2021

The Orbea ALMA M TEAM 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Orbea ALMA M TEAM 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
OC3 31.8mm interface -8º
Saddle
Selle Italia SLR Boost Fill Titanium Rail 316 Ø7 mm
Headset
Acros 1-1/8 - 1-1/2" Semi-intergated Block Lock
Seatpost
OC2 Carbon 27.2 Offset 0
Handlebar
OC3 Carbon Flat 31.8mm 760mm
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Next-SL 34t
Shifter
Shimano XTR M9100
Chain guide
Orbea Alma Carbon OMR & OMX. Compatible up to 36T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Orbea Alma Carbon OMX, Boost 12x148, PF BB, Internal cable routing.
Front suspension
Fox 32 Float Factory
Wheels
Rims
DT Swiss XR-1650 Spline 25c TLR CL, Star Ratchet, Boost
Tires
Maxxis Rekon Race 2.35" 120 TPI Exo TLR

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
445,0
483,0
533,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
559,0
593,0
618,0
647,0
d
Head tube length
90,0
100,0
110,0
125,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1083,0
1118,0
1144,0
1175,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
593,0
602,0
612,0
625,0
l
Reach
395,0
426,0
448,0
474,0
m
Standover height
693,0
729,0
749,0
819,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
660,0
695,0
721,0
752,0
