Orbea ALMA M-TEAM 27.5 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

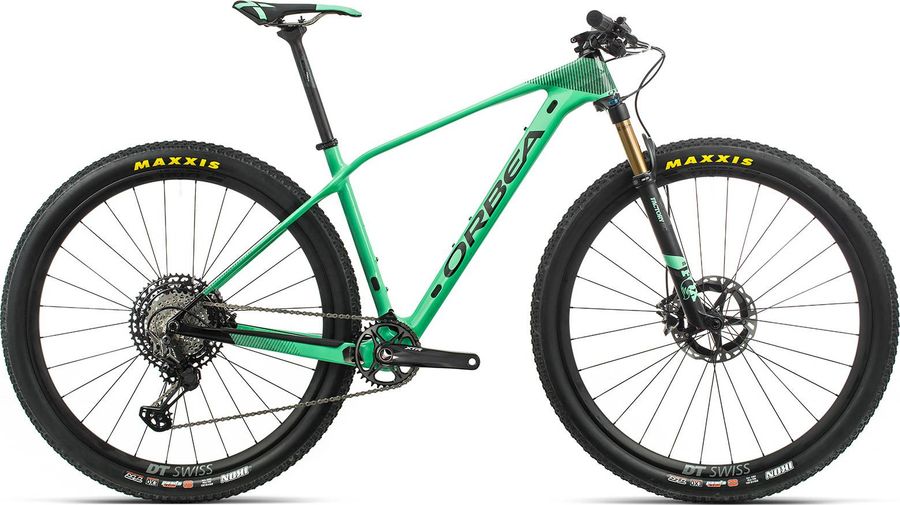

Orbea ALMA M-TEAM 27.5 2020

About the Orbea ALMA M-TEAM 27.5 2020

The Orbea ALMA M-TEAM 27.5 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Orbea ALMA M-TEAM 27.5 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
FSA K-Force
Saddle
Selle Italia X-LR Ti Flow
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
FSA K-Force Light SB0 27.2x400mm Di2 compatible
Handlebar
FSA K-Force Flat 760mm Di2 compatible
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR M9100 34t
Shifter
Shimano XTR M9100
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Orbea Alma Carbon OMR Boost Taper PF DCR
Front suspension
Fox 32 Float Factory
Wheels
Rims
DT Swiss XRC-1200 Spline 25c TLR 15/110mm CL
Tires
Maxxis Ikon 2.20" FB 120 TPI 3C Exo TR

Geometry

Size SM MD
a
Seat tube length
400,0
445,0
b
Seat tube angle
73,5º
73,5º
c
Top tube length
550,0
582,0
d
Head tube length
95,0
105,0
e
Head tube angle
69,3º
69,3º
f
Rake
44,0
44,0
g
Trail
87,0
87,0
h
Wheelbase
1045,0
1078,0
i
Chainstay length
420,0
420,0
j
Bottom bracket drop
43,0
43,0
k
Stack height
573,0
583,0
l
Reach
380,0
409,0
m
Standover height
716,0
735,0
x
Bottom bracket height
312,0
312,0
y
Front center
629,0
662,0
