Orbea ALMA M10 2018

Women's Bike
MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Rigid

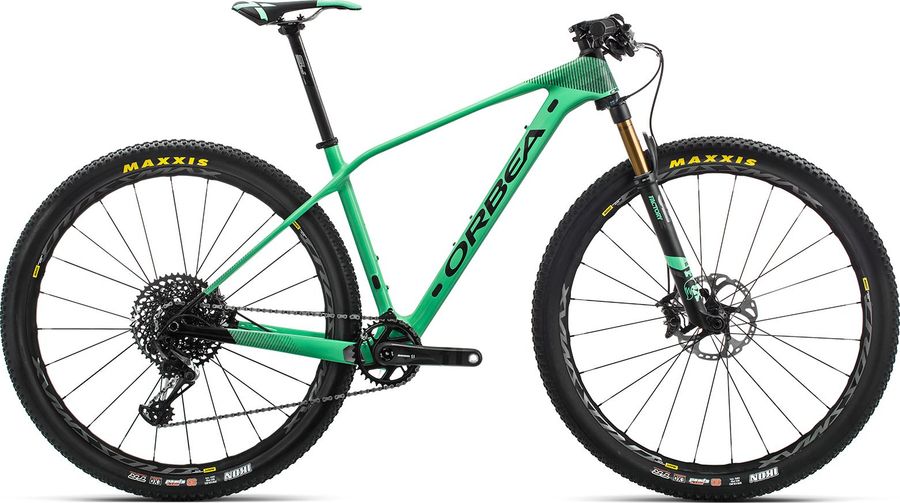

Orbea ALMA M10 2018

About the Orbea ALMA M10 2018

The Orbea ALMA M10 2018 is a Rigid Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Orbea ALMA M10 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
FSA SL-K
Saddle
Selle Italia X-LR Ti Flow Selle Italia Lady Flow Selle Italia X-LR Kit Carbonio S
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
FSA SL-K SB0 27.2x400mm Di2 compatible
Handlebar
FSA SL-K Flat 700mm FSA K-Force Flat 700mm Kit (Bar+Stem+Spost)
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X1 Eagle Dub Carbon Boost 34t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Shifter
SRAM X01 Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Orbea Alma Carbon OMR 2017 Boost Taper PF DCR
Front suspension
Fox 32 SC Float Factory Kashima
Wheels
Rims
Mavic Crossmax Elite TL 6-Bolt Mavic Crossmax Pro Carbon TL 6-Bolt
Tires
Maxxis Ikon 2.20" TLR 120 TPI 3C Exo

Geometry

Size SM SM MD MD LG XL
a
Seat tube length
400,0
400,0
445,0
445,0
483,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
550,0
557,0
582,0
588,0
616,0
640,0
d
Head tube length
95,0
90,0
105,0
95,0
105,0
120,0
e
Head tube angle
69,3º
69,5º
69,3º
69,5º
69,5º
69,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
87,0
86,0
87,0
85,0
86,0
86,0
h
Wheelbase
1045,0
1061,0
1078,0
1092,0
1121,0
1146,0
i
Chainstay length
420,0
430,0
420,0
430,0
430,0
430,0
j
Bottom bracket drop
43,0
61,0
43,0
61,0
61,0
61,0
k
Stack height
573,0
597,0
583,0
602,0
611,0
625,0
l
Reach
380,0
380,0
409,0
409,0
435,0
455,0
m
Standover height
716,0
715,0
735,0
735,0
741,0
802,0
x
Bottom bracket height
312,0
309,0
312,0
309,0
309,0
309,0
y
Front center
629,0
638,0
662,0
669,0
698,0
723,0
