BikeWise

Orbea ALMA M25 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

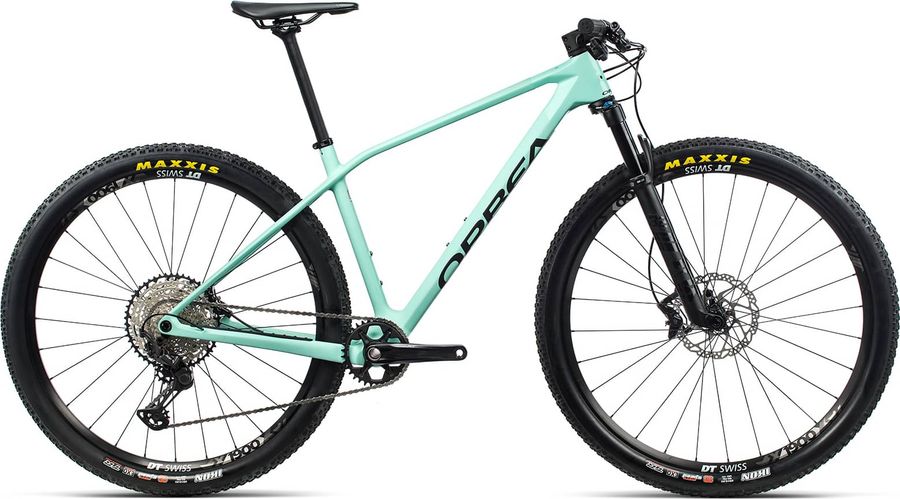

Orbea ALMA M25 2022

About the Orbea ALMA M25 2022

The Orbea ALMA M25 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Orbea ALMA M25 2022 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
OC3 31.8mm interface -8º
Saddle
Fizik Taiga S-alloy rail
Headset
Acros 1-1/8 - 1-1/2" Semi-intergated Block Lock
Seatpost
OC2 forge head 27.2 Offset 0
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano XT M8100 34t
Shifter
Shimano XT M8100 I-Spec EV
Bottom bracket
BSA, 73mm, threaded
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Orbea Alma Carbon OMR, Boost 12x148, PF BB, Internal cable routing.
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
DT Swiss X-1900 Spline 25c TLR 15/110mm CL
Tires
Maxxis Ikon 2.20" FB 120 TPI 3C Exo TR

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
445,0
483,0
533,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
559,0
593,0
618,0
647,0
d
Head tube length
90,0
100,0
110,0
125,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1083,0
1118,0
1144,0
1175,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
593,0
602,0
612,0
625,0
l
Reach
395,0
426,0
448,0
474,0
m
Standover height
693,0
729,0
749,0
819,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
660,0
695,0
721,0
752,0
