Orbea ALMA M30 2019

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

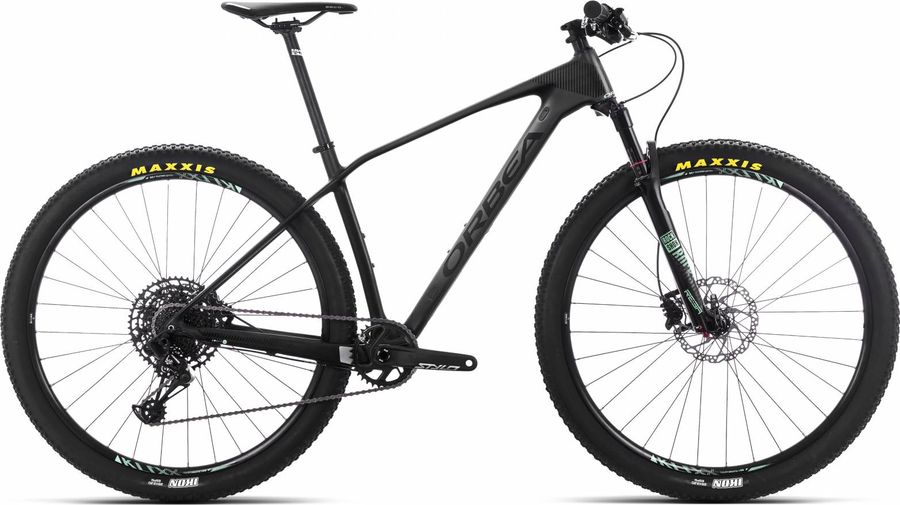

Orbea ALMA M30 2019

About the Orbea ALMA M30 2019

The Orbea ALMA M30 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.

Features

The Orbea ALMA M30 2019 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Race Face Ride
Saddle
Selle Royal Seta Sport
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Ride 27.2x375mm
Handlebar
Orbea OC-II Flat 720mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Stylo CNC Eagle Dub Boost 34t
Shifter
SRAM NX Eagle
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Orbea Alma Carbon OMP 2018 Boost Press Fit Taper
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Maxxis Ikon 2.20" FB 60 TPI Dual

Geometry

Size SM SM MD MD LG XL
a
Seat tube length
400,0
400,0
445,0
445,0
483,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
550,0
557,0
582,0
588,0
616,0
640,0
d
Head tube length
105,0
95,0
115,0
105,0
115,0
130,0
e
Head tube angle
69,0º
-
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
101,0
-
100,0
103,0
103,0
104,0
h
Wheelbase
1045,0
1073,0
1078,0
1092,0
1121,0
1146,0
i
Chainstay length
425,0
436,0
425,0
436,0
436,0
436,0
j
Bottom bracket drop
43,0
61,0
43,0
61,0
61,0
61,0
k
Stack height
581,0
600,0
590,0
609,0
618,0
632,0
l
Reach
380,0
380,0
409,0
409,0
435,0
455,0
m
Standover height
716,0
715,0
735,0
735,0
741,0
802,0
x
Bottom bracket height
312,0
309,0
312,0
309,0
309,0
309,0
y
Front center
624,0
644,0
657,0
663,0
692,0
717,0
