Orbea ALMA M50 27.5 2020

MTB Cross Country
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

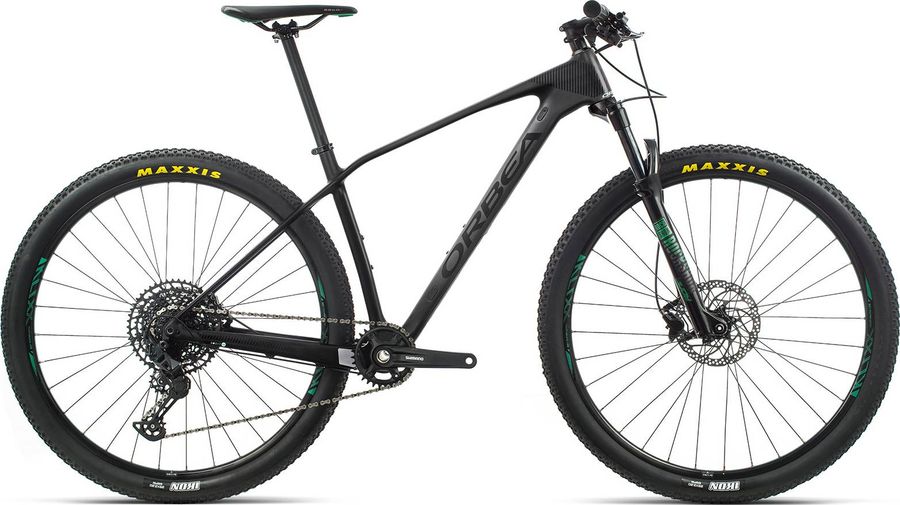

Orbea ALMA M50 27.5 2020

About the Orbea ALMA M50 27.5 2020

The Orbea ALMA M50 27.5 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Orbea ALMA M50 27.5 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Alloy 31.8mm interface 7º
Saddle
Selle Royal Seta Sport
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Alloy forge head 27.2 Offset 0
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano MT610 32t
Shifter
Shimano SLX M7100
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Orbea Alma Carbon OMP 2018 Boost Press Fit Taper
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Maxxis Ikon 2.20" FB 60 TPI Dual

Geometry

Size SM MD
a
Seat tube length
400,0
445,0
b
Seat tube angle
73,5º
73,5º
c
Top tube length
550,0
582,0
d
Head tube length
105,0
115,0
e
Head tube angle
69,0º
69,0º
f
Rake
44,0
44,0
g
Trail
101,0
100,0
h
Wheelbase
1045,0
1078,0
i
Chainstay length
425,0
425,0
j
Bottom bracket drop
43,0
43,0
k
Stack height
581,0
590,0
l
Reach
380,0
409,0
m
Standover height
716,0
735,0
x
Bottom bracket height
312,0
312,0
y
Front center
624,0
657,0
