Orbea ALMA M51 2022

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

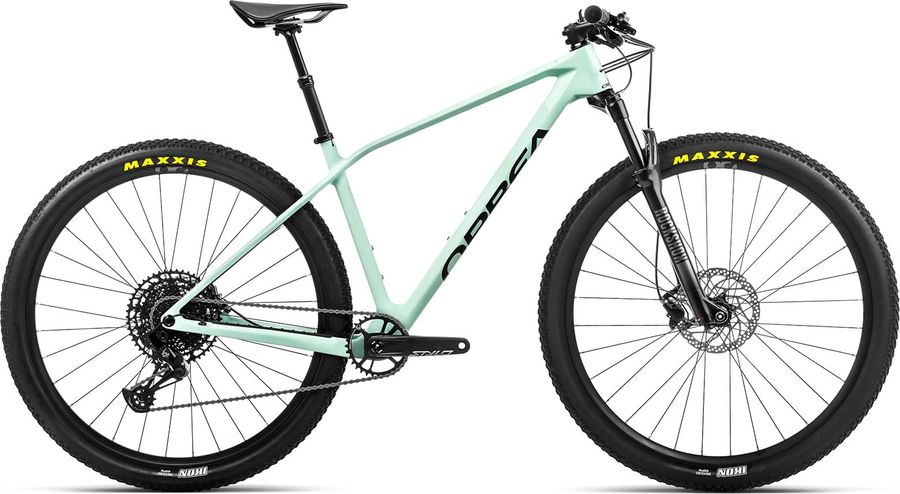

Orbea ALMA M51 2022

About the Orbea ALMA M51 2022

The Orbea ALMA M51 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Orbea ALMA M51 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
OC1 31.8mm interface -7º
Saddle
Selle Italia Model X FecAlloy Rail 145x248mm
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seatpost
OC2 Dropper 27.2mm 80mm travel
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM Stylo 6K Eagle Dub Boost 32t Steel
Shifter
SRAM NX Eagle
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Orbea Alma Carbon OMR, Boost 12x148, PF BB, Internal cable routing.
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Orbea OC1 25c Tubeless Ready
Tires
Maxxis Ikon 2.20" FB 60 TPI Dual

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
445,0
483,0
533,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
559,0
593,0
618,0
647,0
d
Head tube length
90,0
100,0
110,0
125,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1083,0
1118,0
1144,0
1175,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
593,0
602,0
612,0
625,0
l
Reach
395,0
426,0
448,0
474,0
m
Standover height
693,0
729,0
749,0
819,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
660,0
695,0
721,0
752,0
