Orbea LAUFEY 27+ H-LTD 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm

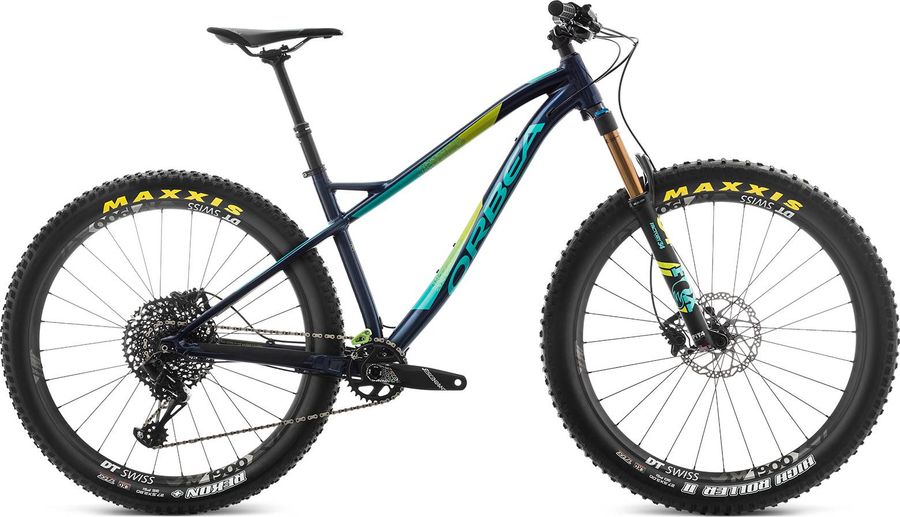

Orbea LAUFEY 27+ H-LTD 2019

About the Orbea LAUFEY 27+ H-LTD 2019

The Orbea LAUFEY 27+ H-LTD 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea LAUFEY 27+ H-LTD 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Aeffect 35mm interface
Saddle
Selle Italia XR Trail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Handlebar
Race Face Aeffect 35 20mm Riser 760mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Descendant CNC Eagle Dub Boost 32t
Shifter
SRAM GX Eagle
Chain guide
OneUp Components ISCG05 Guide
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Orbea Laufey Hydro 2018 Triple Butted 29/27.5+ design. Boost 12x148 ISCG 05
Front suspension
Fox 34 Float Factory Kashima
Wheels
Rims
DT Swiss M-1900 Spline 35c TLR 15/110mm CL
Tires
Maxxis Rekon 2.8" FB 60 TPI Exo TR

Geometry

Size 15" MD 18" 20"
a
Seat tube length
381,0
432,0
470,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
568,0
597,0
619,0
645,0
d
Head tube length
100,0
105,0
115,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
95,0
106,0
95,0
95,0
h
Wheelbase
1101,0
1119,0
1153,0
1181,5
i
Chainstay length
427,9
427,9
427,9
427,9
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
618,9
623,5
632,7
646,5
l
Reach
381,6
408,2
428,0
450,6
m
Standover height
-
-
-
-
x
Bottom bracket height
295,0
295,0
295,0
295,0
y
Front center
680,0
698,0
732,0
760,0
