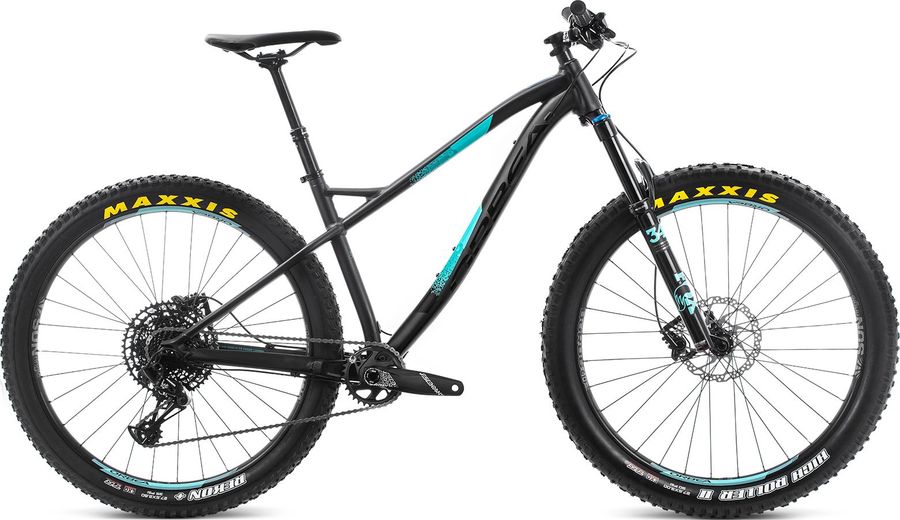

Orbea LAUFEY 27+ H10 2018

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
Orbea LAUFEY 27+ H10 2018

About the Orbea LAUFEY 27+ H10 2018

The Orbea LAUFEY 27+ H10 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea LAUFEY 27+ H10 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Race Face Ride
Saddle
Selle Royal Custom Trail II 2043 HRN Selle Italia XR Trail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31,6x425/150mm
Handlebar
Orbea OC-II Riser 760mm Race Face Aeffect35 Riser 20/760mm+Aeffect R35 Kit
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Descendant CNC Eagle Dub Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA)
Shifter
SRAM NX Eagle
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Orbea Laufey Hydro 2018 Triple Butted 29/27.5+ design. Boost 12x148 ISCG 05
Front suspension
Fox 34 Float Performance
Wheels
Rims
Sun Ringle Duroc 40 Tubeless Ready
Tires
Maxxis Rekon 2.8" 60 TPI Exo TLR

Geometry

Size 15" MD 18" 20"
a
Seat tube length
381,0
432,0
470,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
568,0
597,0
619,0
645,0
d
Head tube length
100,0
105,0
115,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
95,0
106,0
95,0
95,0
h
Wheelbase
1101,0
1119,0
1153,0
1181,5
i
Chainstay length
427,9
427,9
427,9
427,9
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
618,9
623,5
632,7
646,5
l
Reach
381,6
408,2
428,0
450,6
m
Standover height
-
-
-
-
x
Bottom bracket height
295,0
295,0
295,0
295,0
y
Front center
680,0
698,0
732,0
760,0
