Orbea LAUFEY 27+ H30 2019

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail

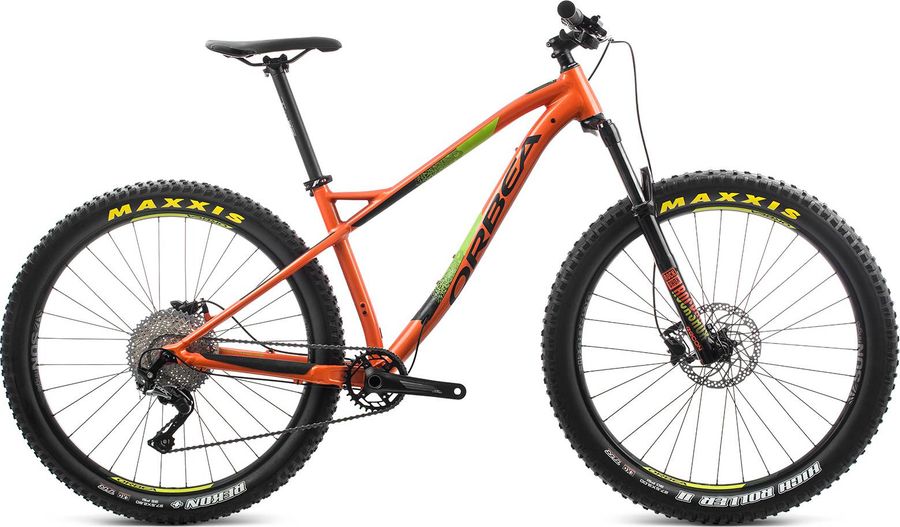

Orbea LAUFEY 27+ H30 2019

About the Orbea LAUFEY 27+ H30 2019

The Orbea LAUFEY 27+ H30 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Orbea LAUFEY 27+ H30 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Orbea OC-II
Saddle
Selle Royal Custom Trail II 2043 HRN
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seatpost
Orbea Digit 31.6x400mm
Handlebar
Orbea OC-II Riser 760mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
OC-Custom PWl Charm-TT-Boost 32t
Shifter
Shimano SLX M7000
Cassette
Sunrace MX8 11-46T 11-speed
Chain
Shimano CN-HG600
Rear derailleur
Shimano SLX RD-M7000-11-SGS
Frameset
Frame
Orbea Laufey Hydro 2018 Triple Butted 29/27.5+ design. Boost 12x148 ISCG 05
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Sun Ringle Duroc 40 Tubeless Ready
Tires
Maxxis Rekon 2.8" 60 TPI Exo TLR

Geometry

Size 15" MD 18" 20"
a
Seat tube length
381,0
432,0
470,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
568,0
597,0
619,0
645,0
d
Head tube length
100,0
105,0
115,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
95,0
106,0
95,0
95,0
h
Wheelbase
1101,0
1119,0
1153,0
1181,5
i
Chainstay length
427,9
427,9
427,9
427,9
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
618,9
623,5
632,7
646,5
l
Reach
381,6
408,2
428,0
450,6
m
Standover height
-
-
-
-
x
Bottom bracket height
295,0
295,0
295,0
295,0
y
Front center
680,0
698,0
732,0
760,0
